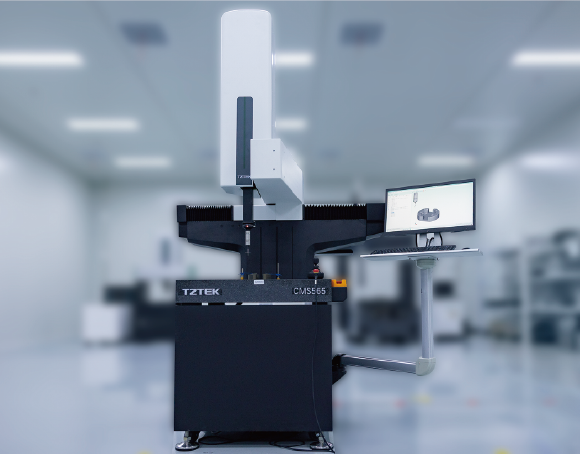

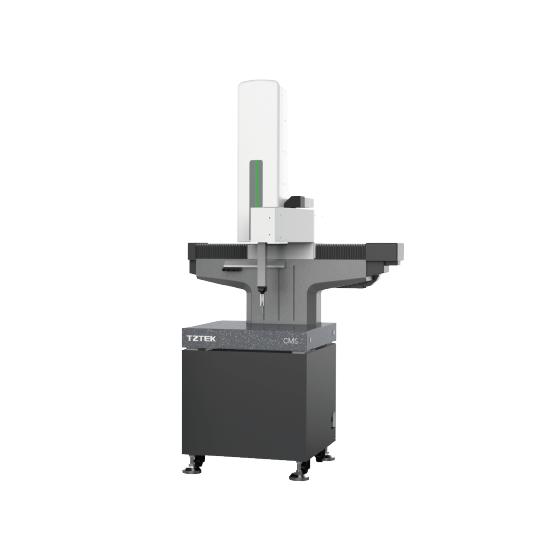

CMS Shopfloor Coordinate Measuring Machine

CMS is a general workshop type coordinate measuring machine, with small space consumption. It's designed to meet the 3D dimensional measurement needs, suitable for all types of workpiece measurement, and its unique structural design improves the system's anti-interference performance for the environment and long-term stability.

It can be widely used in all kinds of production sites, without the need of professional measuring room, and can be seamlessly connected to the production line, achieving convenient and fast workpiece measurement.

Scroll to explore

PRODUCT FEATURES

Great Environment Adaptability

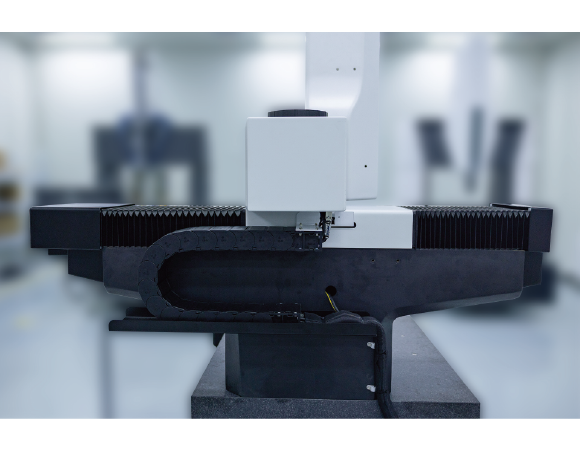

Good protection of the outer cover, effectively avoiding the dust or oil interference.
Excellent measurement accuracy even in 15-40°C operating environments.
Strong Flexibility
No need for compressed air, small and compact body, flexible movement in the workshops.
Can be connected to automatic loading and unloading and embedded in the assembly line operation,which is convenient and efficient.
High Precision
The three axes use low-expansionhigh-resolution scales to ensure good accuracy.
Stable Structure

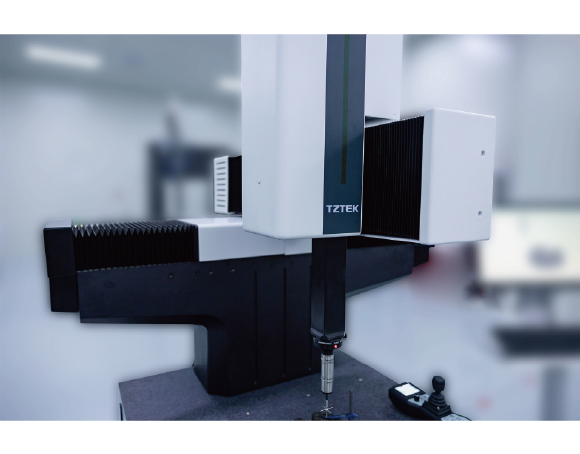

The casting key parts of the main body, combined with the high rigidity linear guides, improves the stability of the structure as well as the accuracy.
Self-developed Software with Better compaibility
Innovatice linear motor drive techology with TCC motion controller
Vispec Cube passed the highest accuracy Class 1 (0.1 μm, 0.1") certification of German PTB
HSP fixed scanning probe
TR50 articulated head

PRODUCT SPECIFICATIONS

CMS565

- Travel (mm)

  500 x 600 x 500
- External Dimensions (mm)

  1400 x 1073 x 2450
- Weight (kg)

  750
- More Information
