Low-Speed Autonomous Vehicles
For cleaning, ports, mining areas, and last-mile delivery, TZTEK provides NVIDIA Jetson series solutions including domain controllers, hardware and software infrastructure services, and batch delivery services.
SHOWCASE OF DOMESTICALLY PRODUCED ADVANCED INTELLIGENT DRIVING
SOLUTIONS
-
01Unmanned Shuttle
Airport Shuttle
Campus Shuttle
Robotaxi
Robobus
-
02Engineering Vehicles
Unmanned Mining Area
Unmanned Port
Agricultural Construction
Road Construction
-
03Urban Cleaning
Mall & Supermarket Cleaning
Campus Cleaning
Road Cleaning & Long-haul Cleaning
-
04Application Scenarios
Express Delivery
Logistics Towing
Long-haul Logistics
ADVANTAGES AND
CHARACTERISTICS
-
Solution Advantages
-
Solution AdvantagesHigh-Performance Hardware Platform
Stable and Reliable Software Platform
High-Precision Spatiotemporal Synchronization System
Multi-Sensor Fusion Calibration System
Mass Production Development and Delivery Services
-

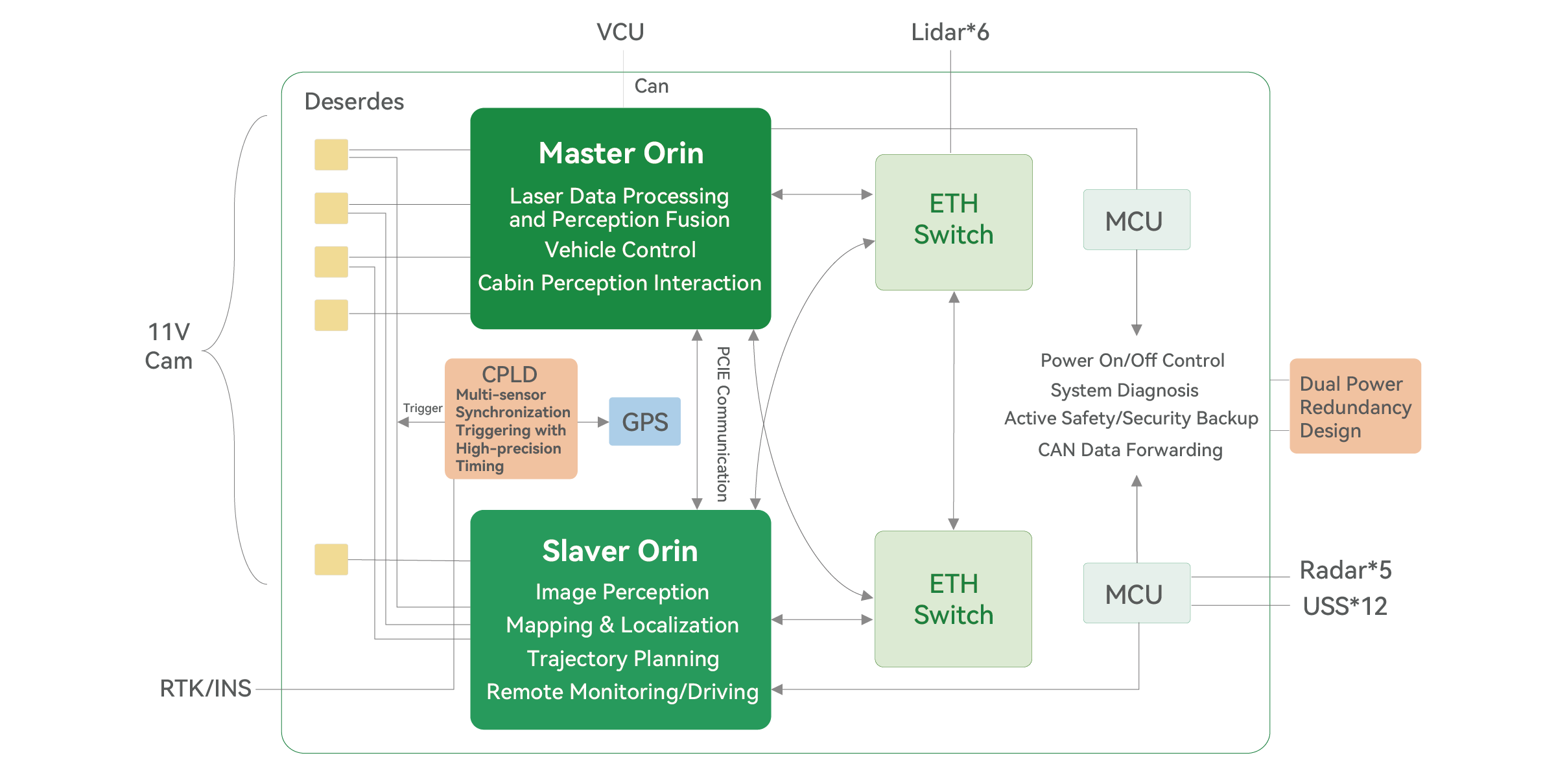

RELATED ARCHITECTURE
-

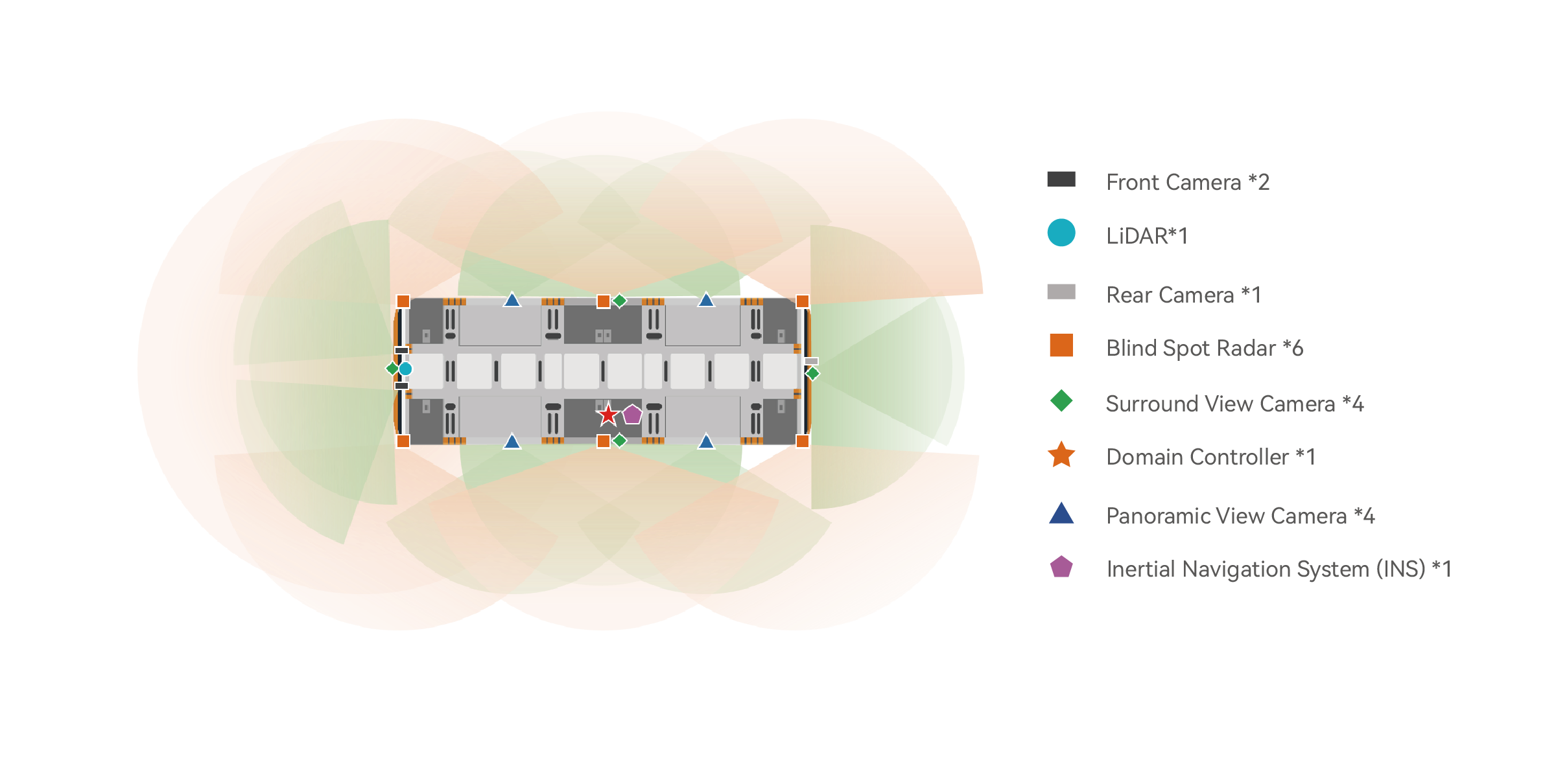

SENSOR CONFIGURATION
RELATED PRODUCTS
-

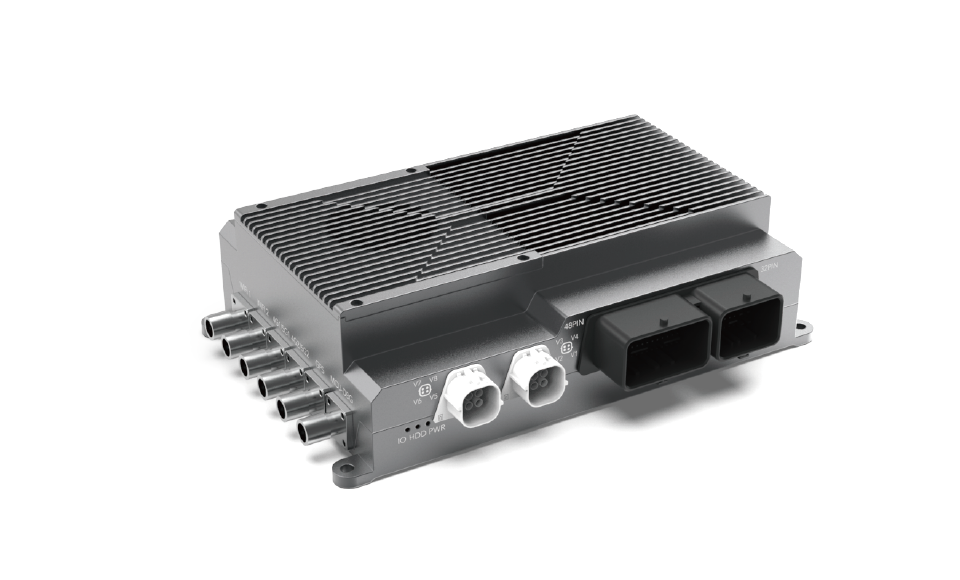

GEACX1Core Board Jetson AGX Orin AI Performance 275 TOPS/200 TOPS Memory 64GB/32GB Camera Port 8*GMSL/GMSL2 Gigabit Ethernet 4*independent Gigabit Ethernet
4G/5G 4G/5G Timing Synchronization PTP GPS Built-in GPS Cooling Method Air Cooling Power Supply DC: +9 V~+36 V Working Temp. -25℃~70℃ Storage Temp. -40℃~85℃ IP Code IP65 Size 237*149*65mm Weight 2.02kg Application Intelligent Driving
Industrial Vision
Remote Control
Intelligent Logistics -

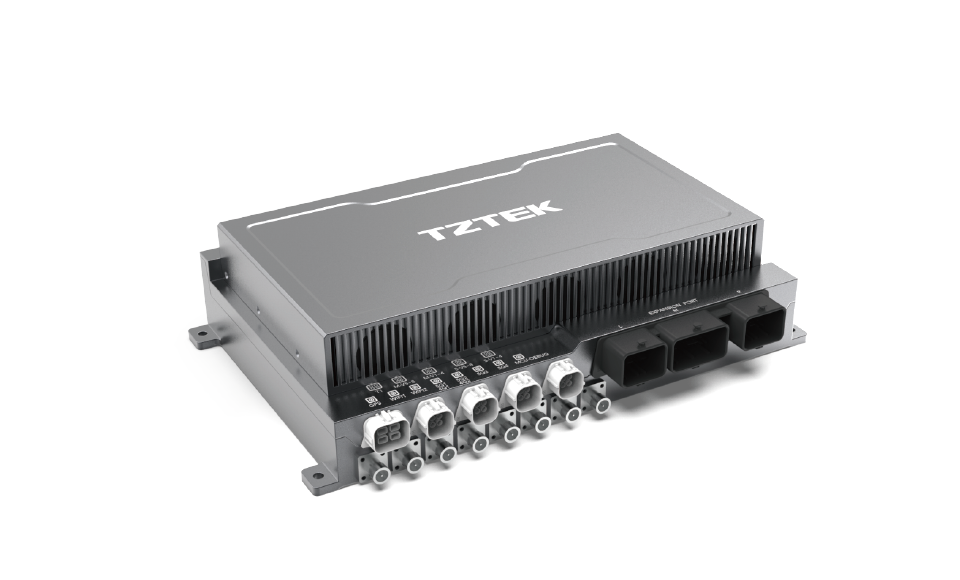

GEACX2Core Board 2*Jetson AGX Orin AI Performance 550 TOPS/400 TOPS Memory 64GB/32GB Camera Port 16*GMSL/GMSL2 Gigabit Ethernet 2*car Gigabit Ethernet
6*independent Gigabit Ethernet
2*Ethernet 10GbE, M12 X-Code
4G/5G 4G/5G Timing Synchronization PTP GPS Built-in GPS Cooling Method Air Cooling Power Supply DC: +10.5 V~+36 V Working Temp. -25℃~70℃ Storage Temp. -40℃~85℃ IP Code IP65 Size 361*215.7*86.4mm Weight 5kg Application Intelligent Driving
Ports & Mining
Education & Research -

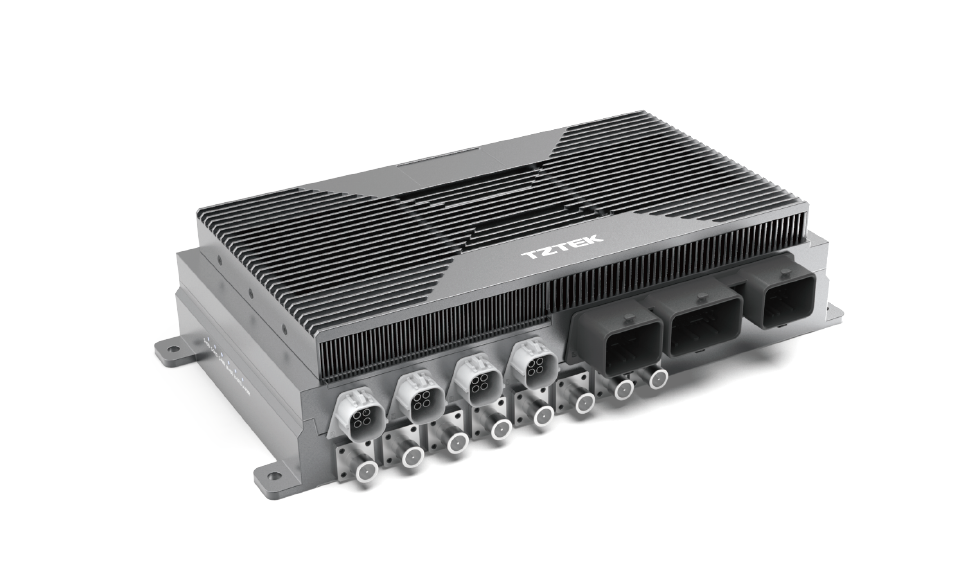

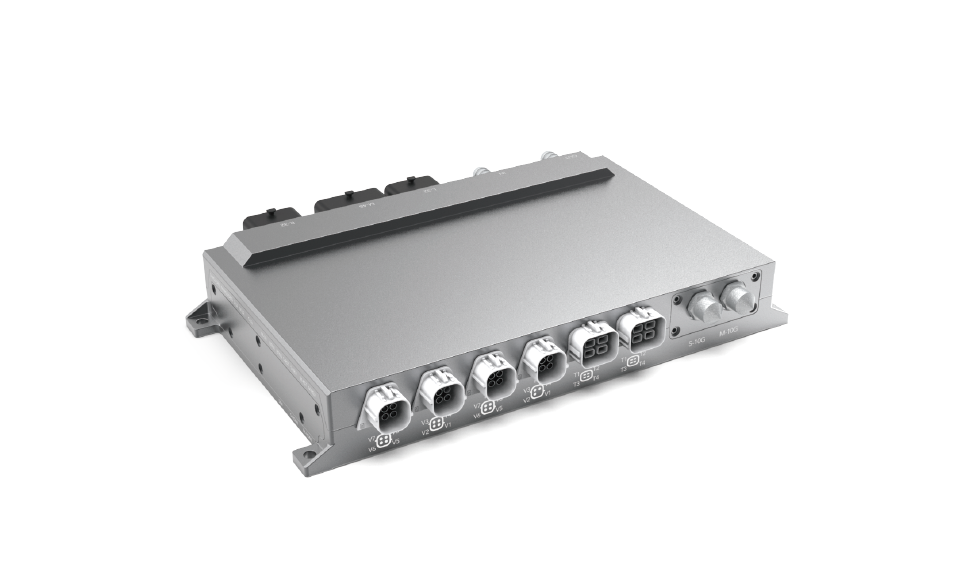

TADC-Orin-2Core Board 2*Jetson AGX Orin AI Performance 550 TOPS/400 TOPS Memory 64GB/32GB Camera Port 16*GMSL/GMSL2 Gigabit Ethernet 8*car Gigabit Ethernet
2*Ethernet 10GbE, M12 X-Code
4G/5G 4G/5G Timing Synchronization PTP/GPTP GPS Built-in GPS Cooling Method Air Cooling/Water Cooling Power Supply DC: +10 V~+32 V Working Temp. -25℃~70℃
-40℃~70℃(Available）
Storage Temp. -40℃~85℃ IP Code IP65 Size 300.5*217.3*50.5mm(Water Cooling)
299.8*212.3*79.2mm(Air Cooling)
Weight 2.98kg(Water Cooling)
4kg(Air Cooling)
Application Intelligent Driving -

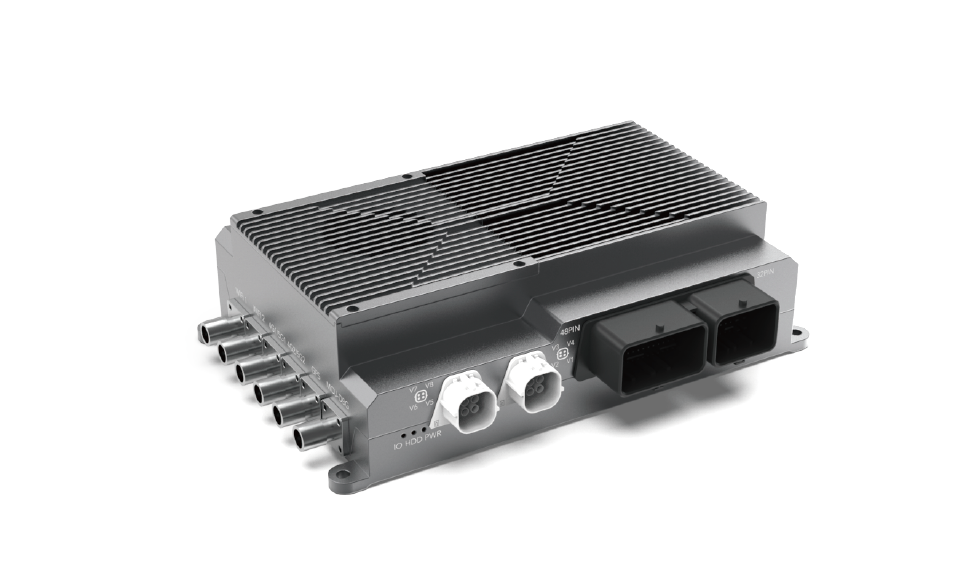

GEACX0Core Board Jetson Orin NX AI Performance 70 TOPS/100 TOPS Memory 16GB/8GB Camera Port 8*GMSL/GMSL2 Gigabit Ethernet 4*independent Gigabit Ethernet
4G/5G 4G/5G Timing Synchronization PTP GPS Built-in GPS Cooling Method Air Cooling Power Supply DC: +9 V~+36 V Working Temp. -20℃~60℃ Storage Temp. -40℃~85℃ IP Code IP65 Size 237*149*65mm Weight 2.02kg Application Mini-Tracked Mobile Robot
Intelligent Vehicle Infrastructure Cooperative Systems (IVICS)
Rail Transit
Smart City
Smart Healthcare
-
GEACX0LCore Board Jetson Orin NX AI Performance 40 TOPS Memory 8GB/4GB Camera Port 8*GMSL/GMSL2 Gigabit Ethernet 4*independent Gigabit Ethernet
4G/5G 4G/5G Timing Synchronization PTP GPS Built-in GPS Cooling Method Air Cooling Power Supply DC: +9 V~+36 V Working Temp. -20℃~75℃ Storage Temp. -40℃~85℃ IP Code IP65 Size 237*149*65mm Weight 2.02kg Application Mini-Tracked Mobile Robot
Intelligent Vehicle Infrastructure Cooperative Systems (IVICS)
Rail Transit
Smart City
Smart Healthcare
