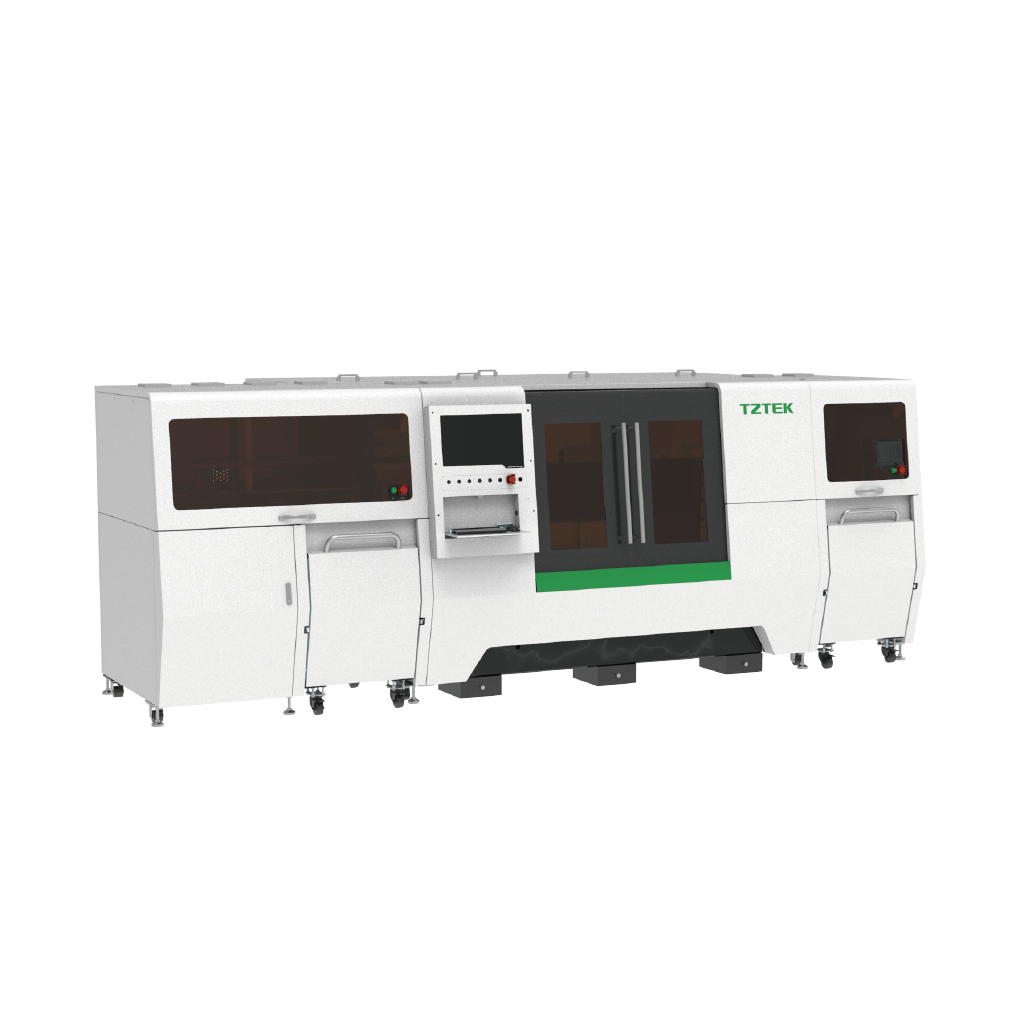

CO2 Laser Drilling Equipment
Featuring a stable CO2 laser & optical path system, high-speed galvo, high-precision motion stage, and high-resolution CCD camera with automated loading/unloading, the equipment leverages TZTEK's vision, calibration, and compensation algorithms to ensure accurate and efficient micro-blind & through-hole vias drilling on PCBs.
Designed for HDI, IC substrates, and rigid-flex PCBs, it supports multiple drilling modes including DLD (brown/black oxide), conformal mask, and large window, etc.
Scroll to explore
Advantages
-
Precision & Efficiency
-
High Stability
-
Smart System
-
Precision & EfficiencyProprietary laser drilling calibration algorithm
Integrated high-speed system: Galvo + XY stage + motion controller
Zone alignment | Shrinkage compensation | Intelligent path planning
-
High Stability10+ years of expertise in precision equipment engineering
Online laser power detection system to control laser power stability
Real-time temperature and humidity monitoring to ensure the stability of key components
-
Smart SystemHighly integrated control system
Auto-production analytics (real-time production data & equipment status)
AI-driven dashboards with IoT-ready interfaces
PRODUCT SPECIFICATIONS
-
CO2
-
-
Standard Table
650×550 (Max) * 2 mm
-
Large Table
815×660 (Max) * 2 mm
-
DLD Diameter
75-200 μm/50-125 μm
-
Galvo frequency
≥3300*2 Hz
-
XY Stage Speed
1000 mm/s (Max)
-
