Automatic LDI Line

TZTEK’s automatic line features proprietary dual-machine or single-machine dual-table designs tailored for high-volume production of rigid (circuit/solder mask) and flexible PCBs. Fully compatible with various dry and wet film processes, it delivers efficient, continuous manufacturing with exceptional stability and reliability.

The rigid board line achieves a maximum daily throughput of 10,000 panels, while the flexible board line supports dual-/quad-panel configurations, delivering a daily throughput of 8,000 – 9,000 panels. This significantly enhances production efficiency with proven stability and reliability.

Training Certificate Inquiry

Scroll to explore

Advantages

Intelligent Automation
Broad Compatibility
High Productivity

Intelligent Automation

Four-axis robotic arms for integrated loading/unloading, transfer, and flipping
Seamless connection with upstream and downstream processes, minimizing manual intervention
Broad Compatibility

Rigid and flexible PCB lines supported
Compatible with dry and wet film processes
High Productivity

Rigid board line: up to 10,000 pnl/day
Flexible board line: up to 8,000–9,000 pnl/day

PRODUCT SPECIFICATIONS

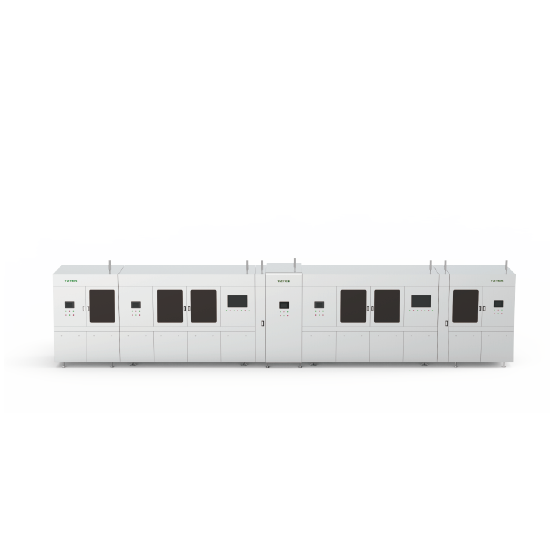

Dual-machine dual-table automatic line (rigid boards)

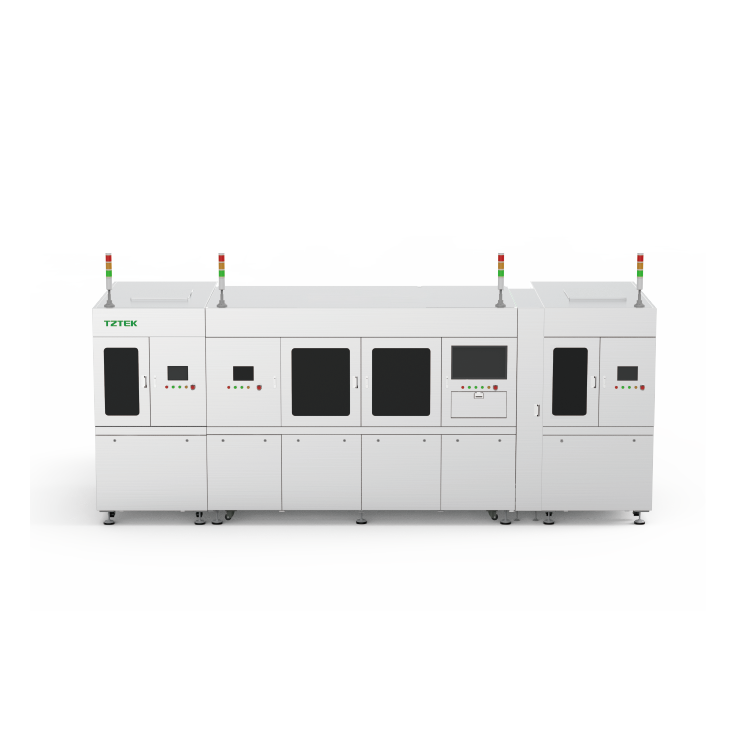

Single-machine dual-table automatic line (rigid boards)

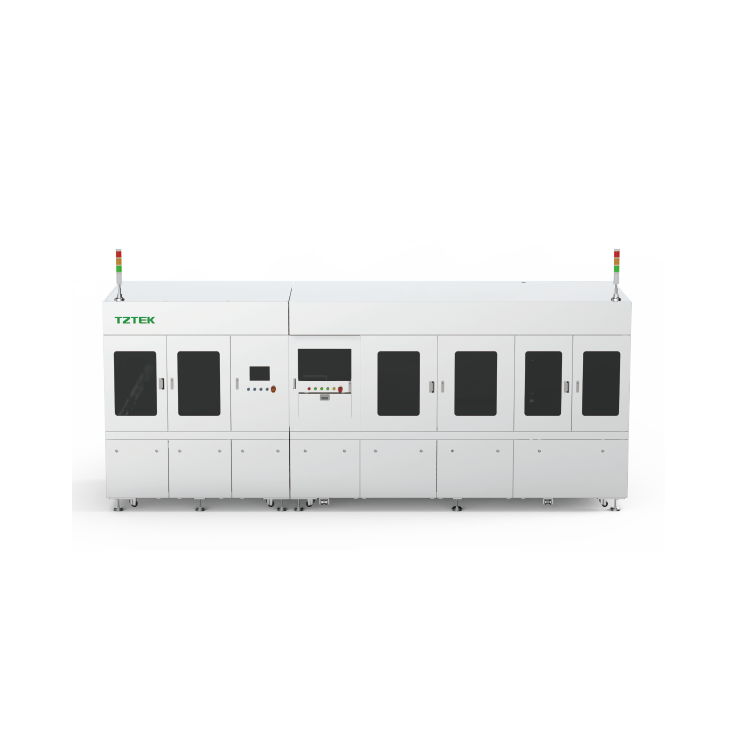

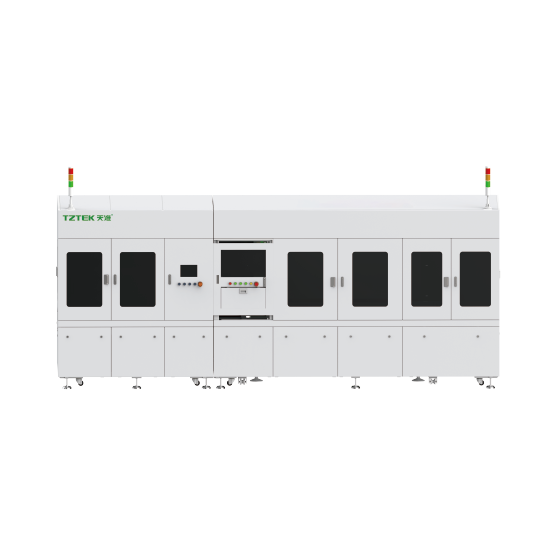

Single-machine dual-table automatic line (flexible boards)

- 01

  Independently developed and manufactured; stable and reliable
- 02

  Rigid board circuit and solder mask processing supported
- 03

  Compatible with standard and specialized dry film and wet film processes
- 04

  Daily throughput: up to 10,000 pnl/day
- More Information
- 01

  Rigid board circuit and solder mask processing supported
- 02

  Compatible with standard and specialized dry film and wet film processes
- 03

  Daily throughput: up to 6,000 pnl/day
- More Information
- 01

  Flexible board circuit and solder mask processing supported
- 02

  Daily throughput: up to 9,000 pnl/day (quad panel setup)
- 03

  Daily throughput: up to 8,000 pnl/day (dual panel setup)
- More Information
