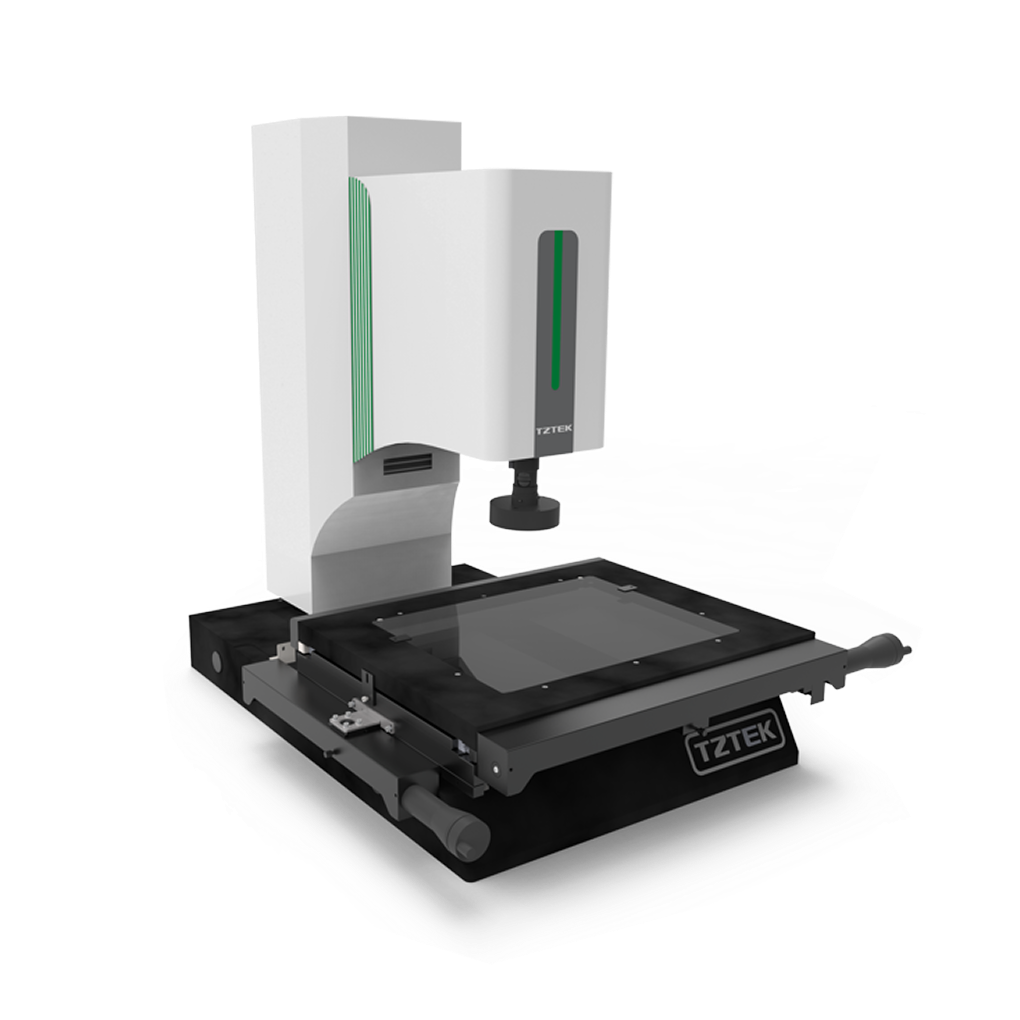

VMA Semi-Automatic Video Measuring Machine

VMA Semi-auto Video Measuring Machine is easy to use and has report output function. It can measure points, lines, circles and other elements.

It is suitable for the measurement of many kinds and small batches of products.

Scroll to explore

PRODUCT FEATURES

Semi-automatic Measurement with Programmable Capability
Z axis with motor to automatic focusing, height measurement and lifting
Programmed ring surface light, profile light, etc
Auto-focusing, auto-illumination, automatic edge capturing
Rich Optical System
Manual zoom lens, magnification identified automatically with software
Magnification up to 25-160×
Optional contact probe, coaxial light etc
Stable Moving Platform
Granite structure that provides high precision and stability
Precision scales and linear rails ensures measurement accuracy

PRODUCT SPECIFICATIONS

VMA2515
VMA3020
VMA4030

- Travel (mm)

  250 x 150 x 150
- Measuring Range (mm)

  250 x 150 x 125
- External Dimensions (mm)

  604 x 880 x 1470
- Weight (kg)

  235
- More Information
- Travel (mm)

  300 x 200 x 200
- Measuring Range (mm)

  300 x 200 x 175
- External Dimensions (mm)

  683 x 880 x 1580
- Weight (kg)

  305
- More Information
- Travel (mm)

  400 x 300 x 200
- Measuring Range (mm)

  400 x 300 x 175
- External Dimensions (mm)

  720 x 980 x 1470
- Weight (kg)

  395
- More Information
