CME Economic Coordinate Measuring Machine

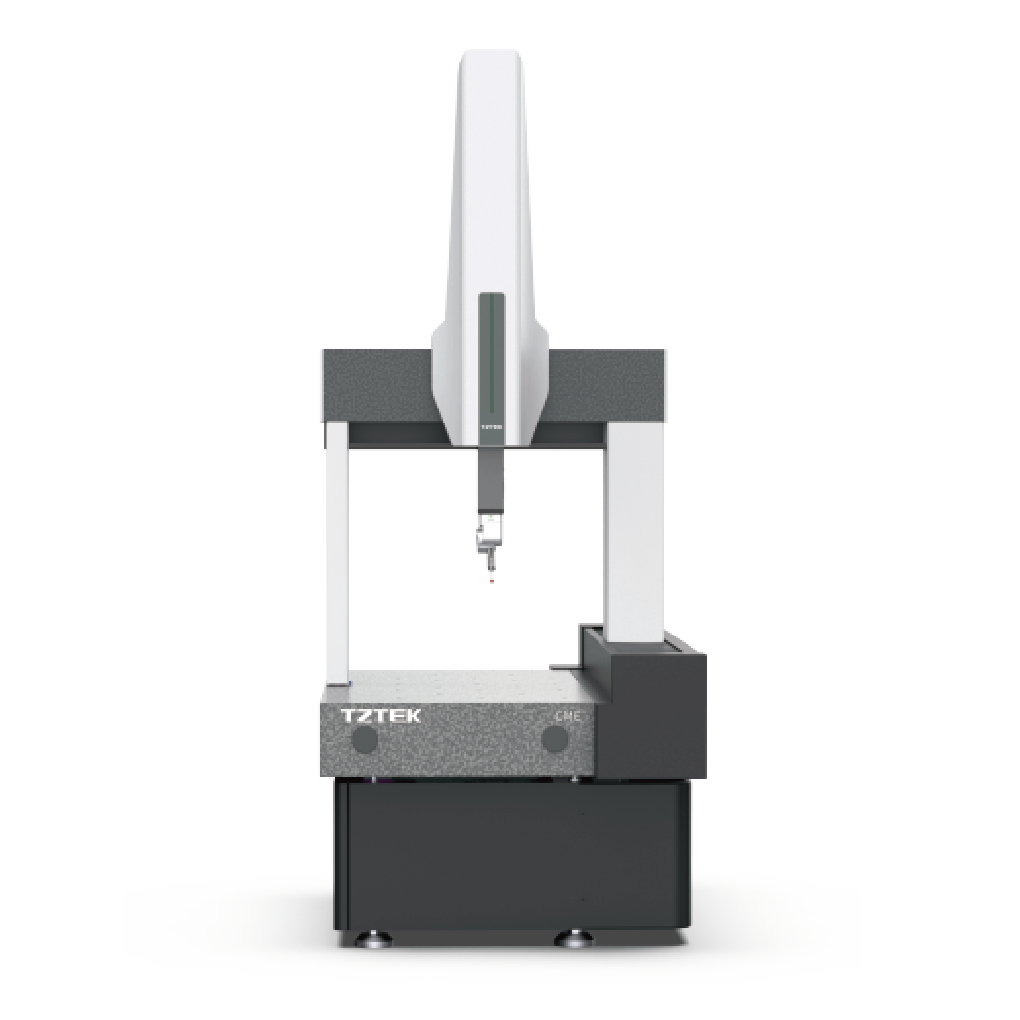

CME adopts stable rectangular beam structure to increase the rigidity of the structure, and the structure of the moving bridge design to ensure high efficiency and high precision measurement. CME series is designed to meet the user's basic needs for 3D measurements, with high precision, versatility, automation, flexibility, etc.
CME provides stable and efficient measurement solutions for the production site and R & D centers. It is widely used in machinery manufacturing, mold manufacturing, automotive industry, electronic industry and other fields.
Scroll to explore

PRODUCT FEATURES

  • 580×454_CME结构.png
    Classic Structure Design
    • CAE-assisted design analysis reduces the deviation of structural design, improves the stability of the structure, and ensures the long-term stability of accuracy

    • The classic moving bridge design is simple, compact, open and fast moving, providing high efficient and high accuracte measurements


  • 580×454_CMU气浮.png
    High Stability
    • All three axes are made of granite to ensure a consistent coefficient of expansion

    • The unique rectangular beam structure is adopted to increase the rigidity of the structure and ensure that the machine is fast, smooth and precise

    • Highly rigid high-performance air-bearing guides, frictionless and wear-free, and all three axes are designed with a four-side encircling design to effectively ensure stability

  • 580×454_光栅尺.png
    High Accuracy
    • The three axes use high-resolution scales to ensure good accuracy.

  • 580×454_CME气缸.png
    Safety
    • The Z-axis adopts a balanced cylinder, which ensures the consistency of the up and down movement of the Z-axis, and also ensures the safety of the detection system in case of emergency

  • 580×454_CMZ-5.png
    Self-developed Software with Better compaibility
    • Innovatice linear motor drive techology with TCC motion controller

    • Vispec Cube passed the highest accuracy Class 1 (0.1 μm, 0.1") certification of German PTB

    • HSP fixed scanning probe

    • TR50 articulated head

PRODUCT SPECIFICATIONS

  • CME686

  • CME8106

  • CME10128

  • CME10158

  • CME10208

  • CME121510

  • CME122210
