Advanced Commercial Vehicles

For long-haul logistics vehicles, last-mile delivery logistics vehicles, Robotaxi, and Robobus, TZTEK provides intelligent driving domain controller products and system integration services based on Horizon Journey®5 and Journey®6 chip series.

ADVANTAGES AND
CHARACTERISTICS

  • Solution Advantages

  • Product Reliability

  • Technical Services

  • Solution Advantages

    Localization

    Exceptional Cost-Effectiveness

    Efficient Service and Technical Support Response

  • Product Reliability

    Compliance with Functional Safety and Information Security Standards

    Built on Extensive Corner Case Expertise

    Key Components Sourced Domestically, Ensuring Secure Supply Chains

  • Technical Services

    Algorithm Migration Services Across Multiple Platforms

    Custom Development Tailored to Customer Requirements

    Supports ISP and Other System Integration Services

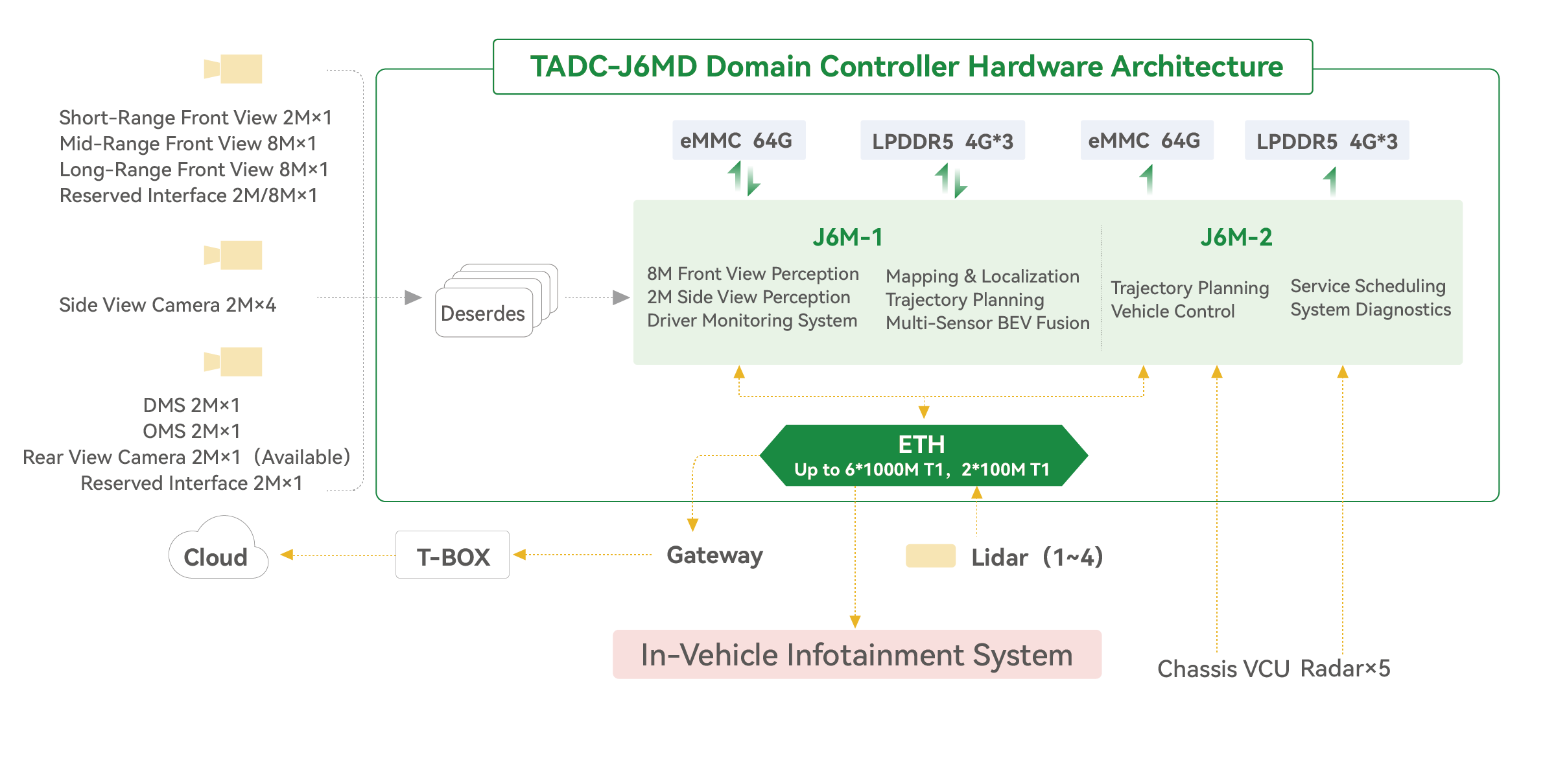

  • RELATED ARCHITECTURE

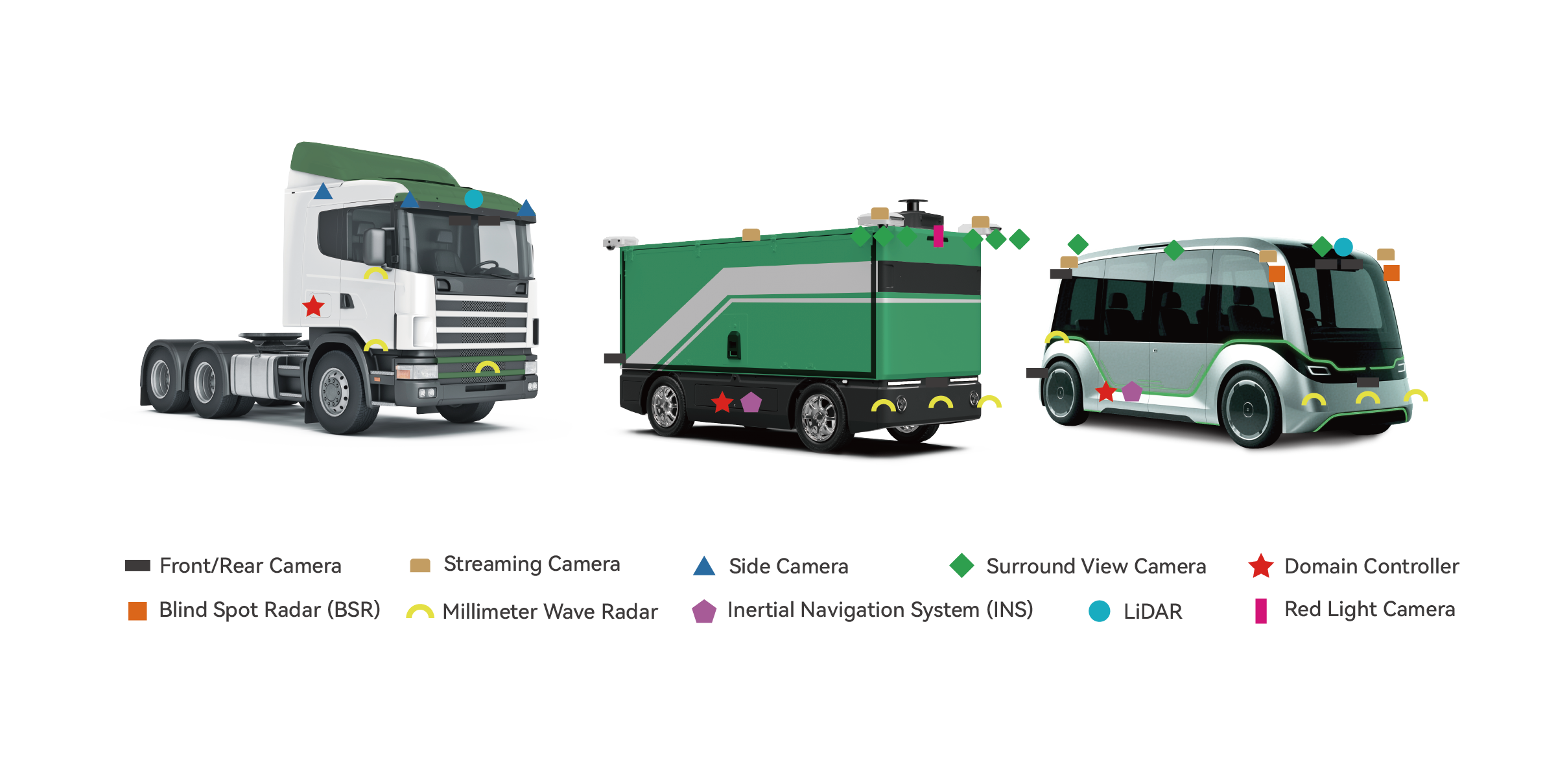

  • SENSOR CONFIGURATION


RELATED PRODUCTS

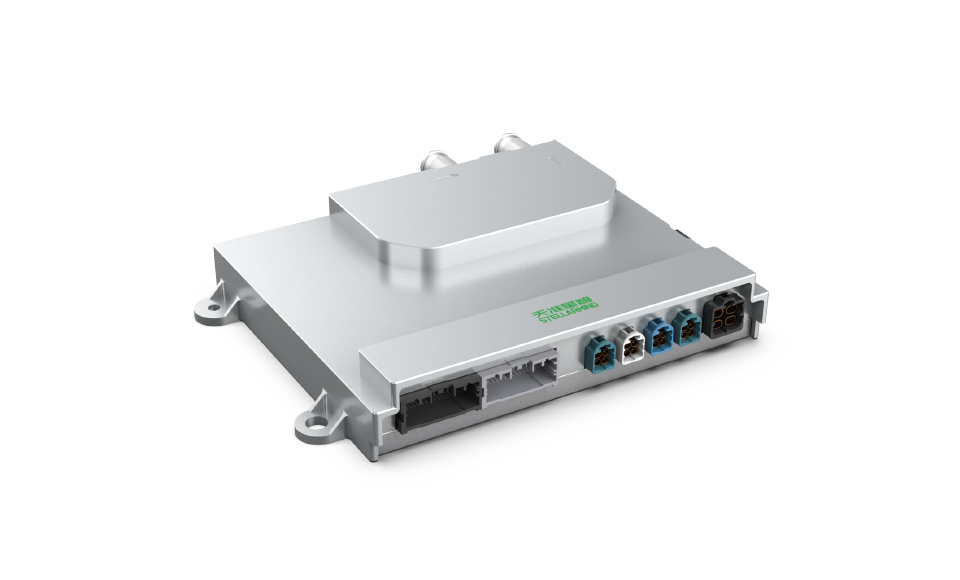

  • 960×580_机器人_TADC-J6M.png
    TADC-J6M
    Core BoardHorizon J6M
    AI Performance128 TOPS
    Memory12GB LPDDR5
    Camera Port12 x GMSL2
    Gigabit Ethernet2 x 1000BaseT1
    2 x 100BaseT1
    GPSBuilt-in GPS
    Cooling MethodWater cooling/Air cooling
    Power SupplyDC: +9 V~+36 V
    Working Temp.-40℃~85℃
    Storage Temp.-40℃~105℃
    IP CodeIP52
    Size245*175*40mm
    Weight1.7kg
    ApplicationPassenger Vehicles Urban NOA, Highway NOA
  • 960×580_机器人_TADC-J62.png
    TADC-J6MD
    Core Board2*Horizon J6M
    AI Performance2*128 TOPS
    Memory2*12GB LPDDR5
    Camera Port12*GMSL2
    Gigabit Ethernet6*1000BaseT1
    2*100BaseT1
    GPSBuilt-in GPS
    Cooling MethodWater cooling/Air cooling
    Power SupplyDC: +9 V~+36 V
    Working Temp.-40℃~85℃
    Storage Temp.-40℃~105℃
    IP CodeIP52
    Size299*187*47mm
    Weight2.1kg
    ApplicationPassenger Vehicles Urban NOA, Highway NOA, Low-Speed Autonomous Vehicles, Trucks, Minecarts
  • 960×580_机器人_TADC-J6P.png
    TADC-J6P
    Core BoardHorizon J6P
    AI Performance560 TOPS
    Memory32GB LPDDR5
    Camera Port16*GMSL2
    Gigabit Ethernet

    2*10G

    9*1000M

    8*100M

    GPSBuilt-in GPS
    Cooling MethodWater cooling/Air cooling
    Power SupplyDC: +9 V~+36 V
    Working Temp.-40℃~85℃
    Storage Temp.-40℃~105℃
    IP CodeIP52
    Size285*185*42mm
    Weight3.4kg
    ApplicationUrban NOA, Highway NOA
  • 960×580_机器人_TADC-J6P.png
    TADC-J6PD
    Core Board2*Horizon J6PD
    AI Performance2*560 TOPS
    Memory2*32GB
    Camera Port24*GMSL2
    Gigabit Ethernet

    2*10G

    9*1000M

    8*100M

    GPSBuilt-in GPS
    Cooling MethodWater cooling/Air cooling
    Power SupplyDC: +9 V~+36 V
    Working Temp.-40℃~85℃
    Storage Temp.-40℃~105℃
    IP CodeIP52
    Size285*185*42mm
    Weight3.4kg
    ApplicationPassenger Vehicles Urban NOA, Highway NOA
