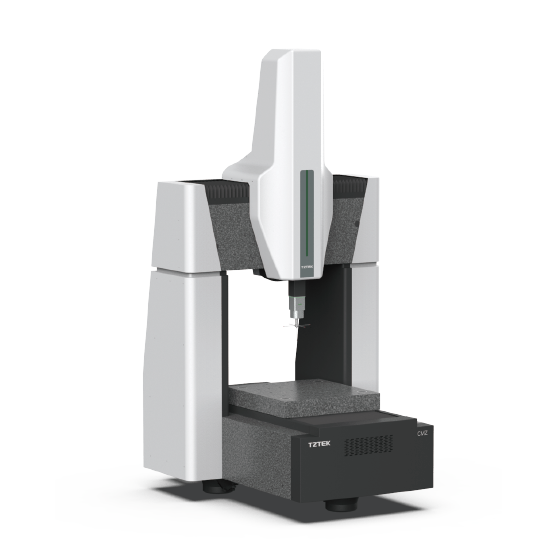

CMZ Zenith Coordinate Measuring Machine

CMZ ultra-high precision coordinate measuring machine is a high-end metrology equipment produced by TZTEK. The Z-axis is made of silicon carbide material, and the machine structure adopts a fixed-bridge design, ensuring the stability of the mechanical structure.

The use of linear motors ensures both precision and higher measurement speed and acceleration, meeting the measurement needs of complex components. CMZ series boasts excellent accuracy, high efficiency, and stable performance, helping to achieve precise machining, assembly, and quality control. It is applicable in fields such as metrology, aerospace, national defense, automotive manufacturing, and electronics industry.

Scroll to explore

PRODUCT FEATURES

Metrological Accuracy
Sub-micron measurement accuracy due to its excellent system design
Excellent Structure Design
It adopts a fixed-bridge and high-rigidity mechanical structure, using a combination of granite beams, bases and columns, as well as precision SiC ceramic Z-axis, to maintain the stability of the mechanical structure and strong resistance to external interference
The mobile working platform adopts double dovetail air-float guide rails to ensure good stability
Outstanding Stability
The SiC ceramic Z-axis, with its low coefficient of thermal expansion, high rigidity and light weight, ensures the stability of the measuring system and improves the motion performance
The use of preloaded air bearings in each axis and the circular layout provide high rigidity, no contact, low friction, and low wear, which effectively maintains the machine's lifetime and reduces the number of occurrences of measurement uncertainty
Adopting zero expansion coefficient scale, the resolution is ultra-high to reach the nanometer level, and it is not affected by the external temperature, which ensures the high precision and stability of the machine
Safety
Z-axis adopts flexible balance cylinder to ensure the reliability of Z-axis movement
The Z-axis counterbalance cylinders are equipped with two protection mechanisms, pneumatic logic protection and hardware hold-up protection, to ensure the safety of the probing system in case of emergency
Self-developed Software with Better compaibility
Innovatice linear motor drive techology with TCC motion controller
Vispec Cube passed the highest accuracy Class 1 (0.1 μm, 0.1") certification of German PTB
HSP fixed scanning probe
TR50 articulated head

PRODUCT SPECIFICATIONS

CMZ686
CMZ8106
CMZ10128
CMZ10158
CMZ121510
CMZ122010

- Travel (mm)

  600 x 800 x 600
- External Dimensions (mm)

  1682 x 2107 x 3260
- Weight (kg)

  4760
- More Information
- Travel (mm)

  800 x 1000 x 600
- External Dimensions (mm)

  1882 x 2557 x 3260
- Weight (kg)

  6207
- More Information
- Travel (mm)

  1000 x 1200 x 800
- External Dimensions (mm)

  2082 x 3007 x 3660
- Weight (kg)

  8000
- More Information
- Travel (mm)

  1000 x 1500 x 800
- External Dimensions (mm)

  2082 x 3582 x 3660
- Weight (kg)

  9600
- More Information
- Travel (mm)

  1200 x 1500 x 1000
- External Dimensions (mm)

  2282 x 3582 x 4060
- Weight (kg)

  10800
- More Information
- Travel (mm)

  1200 x 2000 x 1000
- External Dimensions (mm)

  2282 x 4632 x 4060
- Weight (kg)

  13800
- More Information
