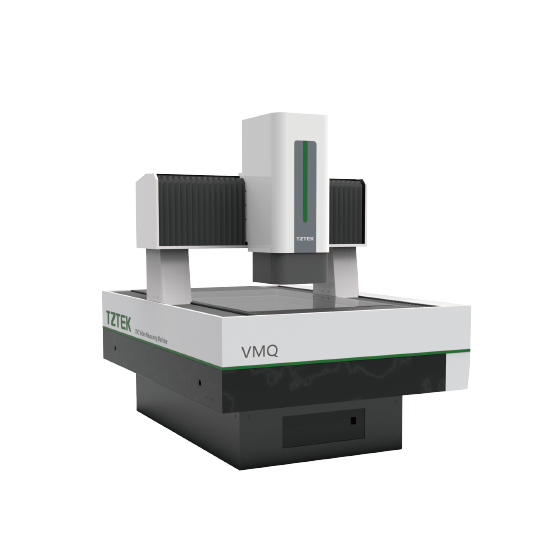

VMQ Gantry Quick Video Measuring Machine

VMQ Gantry Quick Video Measuring Machine combines advantages of a large travel range from a gantry measuring machine with large field of view from a quick measuring machine.

The combination allows for fast,high-precision measurement of large workpieces.

Scroll to explore

PRODUCT FEATURES

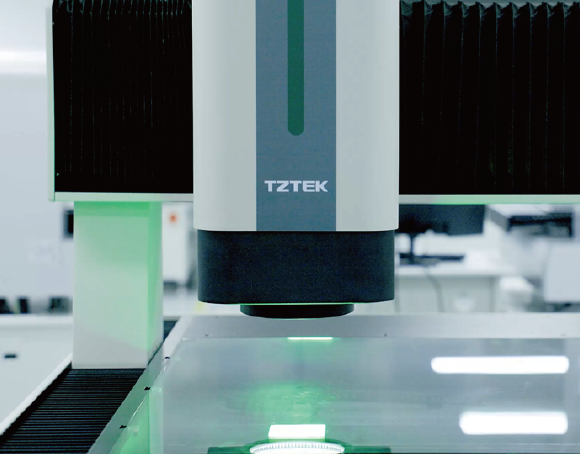

High Precision and High Efficiency with One-button Quick Measuring
Accurate and quick measuring, capable of identifying multiple work pieces in one FOV, suitable for batch measuring
Automatic image registration, quick positioning of work pieces without assistance of fixture
Automatically load program without the need of manual search
Fusion measurement ensures quick measurement for large workpiece

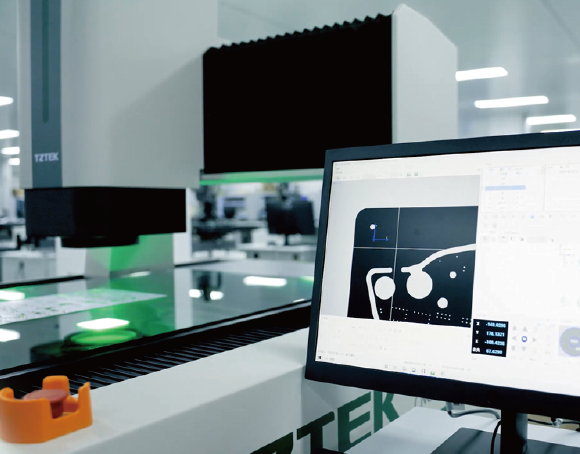

StableMoving Platform
Gantry mobile bridge structure with large travel range enables silent measurement, efficiency and safety
Granite structure provides high precision and stability
Linear motor drive, smooth and reliable operation, acceleration of XY stage up to 1000mm/s2

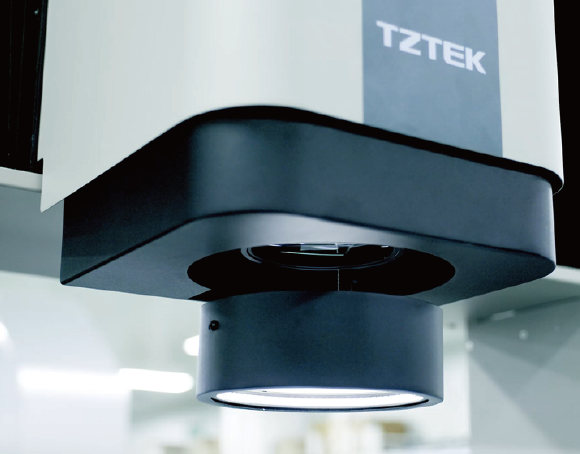

Rich Functions
Large depth of view, high resolution, panoramic range of clear imaging, wide field of view up to Φ100mm
Optional liftable surface light, presenting measurement details from multiple angles
Optional chromatic confocal sensor, ring auxiliary light, manual/automatic pressure plate etc

PRODUCT SPECIFICATIONS

VMQ452
VMQ682
VMQ8102
VMQ454
VMQ684
VMQ8104

- Travel (mm)

  400 x 500 x 200
- External Dimensions (mm)

  1255 x 1532 x 1747
- Weight (kg)

  1500
- More Information
- Travel (mm)

  600 x 800 x 200
- External Dimensions (mm)

  1455 x 1732 x 1747
- Weight (kg)

  1900
- More Information
- Travel (mm)

  800 x 1000 x 200
- External Dimensions (mm)

  1715 x 2212 x 1777
- Weight (kg)

  2900
- More Information
- Travel (mm)

  400 x 500 x 400
- External Dimensions (mm)

  1715 x 2212 x 1777
- Weight (kg)

  2900
- More Information
- Travel (mm)

  600 x 800 x 400
- External Dimensions (mm)

  1455 x 1732 x 1747
- Weight (kg)

  1900
- More Information
- Travel (mm)

  800 x 1000 x 400
- External Dimensions (mm)

  1715 x 2212 x 2022
- Weight (kg)

  2900
- More Information
