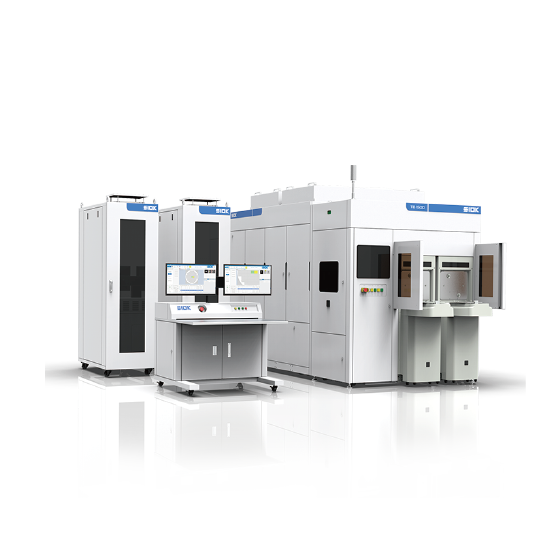

TB1100

For customers with 65 nm-180 nm technology nodes Compatible with 8-inch/12-inch wafers
Scroll to explore

Advantages

  • High Sensitivity

  • High Throughput

  • Intelligent Software Support:

  • High Sensitivity

    Capable of consistently detecting defects as small as 70 nm

    Advanced signal processing algorithms enhance the signal-to-noise ratio

    Broadband technology allows detection of various types of defects

  • High Throughput

    High data rate

    Multiple pixel size options

    Supports high-speed scanning mode

  • Intelligent Software Support:

    Online Intelligent Classification System SDA

    Process Window Qualification
