Embodied Intelligence
For scenarios involving embodied intelligence and general artificial intelligence, TZTEK provides NVIDIA Jetson series solutions including general intelligent controllers, foundational software services, system integration, and mass production delivery services.
SHOWCASE OF DOMESTICALLY PRODUCED ADVANCED INTELLIGENT DRIVING
SOLUTIONS
-
01Smart Industrial Robots
Goods Handling
Assembly
Material Sorting
-
02Household Service Robots
Domestic Chores
Home Entertainment
Security Monitoring
Family Health Car
-
03Public Service Robots
Catering Services
Guided Tours
Multimedia Applications
Marketing
Public Entertainment
-
04Intelligent Special-Purpose Robots
Fire Rescue
Power Inspection & Maintenance
Medical Surgery & Nursing
Underwater Exploration
Construction Site Monitoring
-
05Educational Robots
Family Education
Scientific Research Exploration
ADVANTAGES AND
CHARACTERISTICS
-
Solution Advantages
-
Product Reliability
-
Solution AdvantagesHigh Performance
Compact Size
Rich Interfaces
Basic Software Platform
-
Product ReliabilityHigh-Reliability Design and Simulation
Comprehensive Test Validation
-

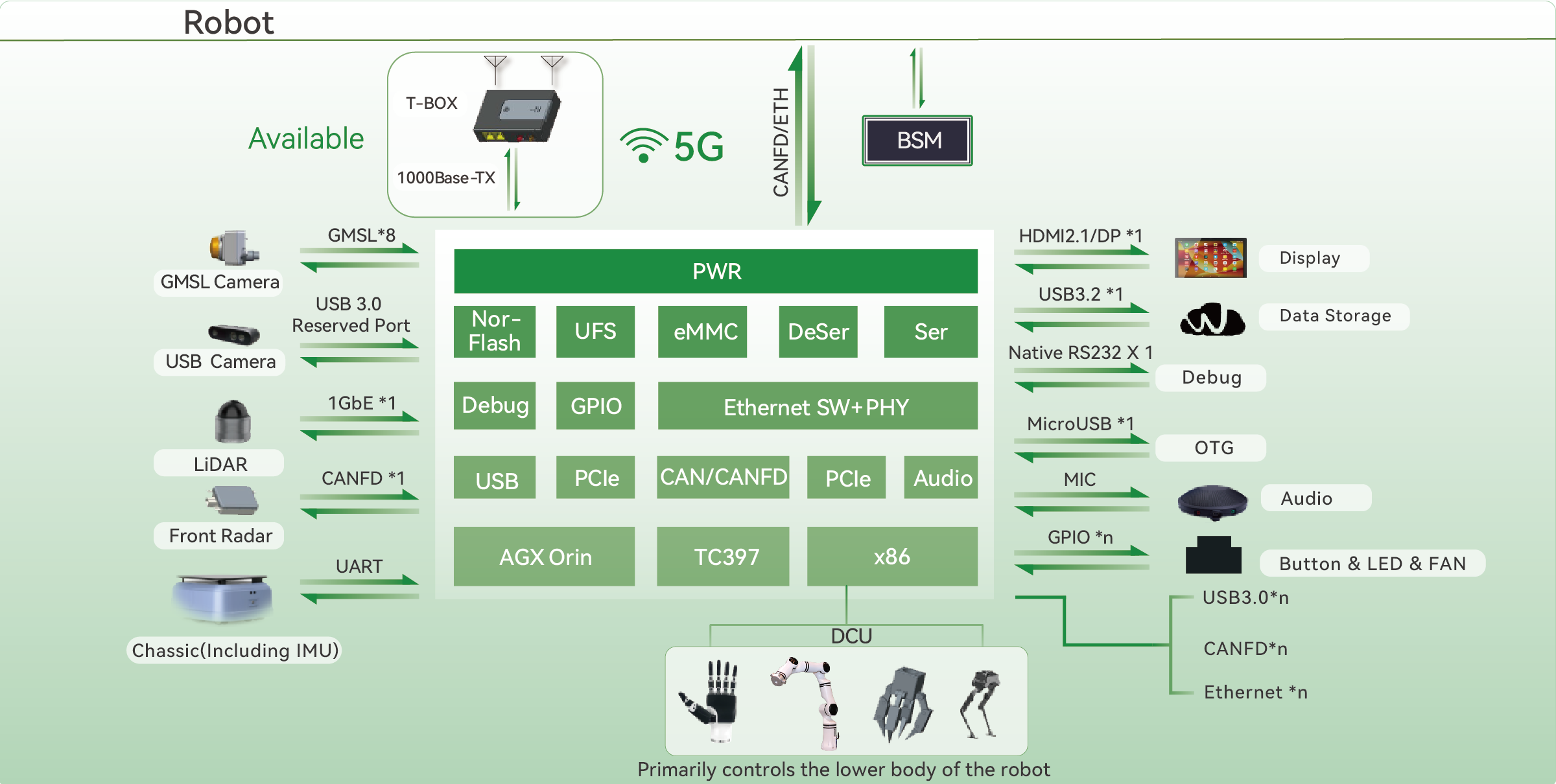

RELATED ARCHITECTURE
-

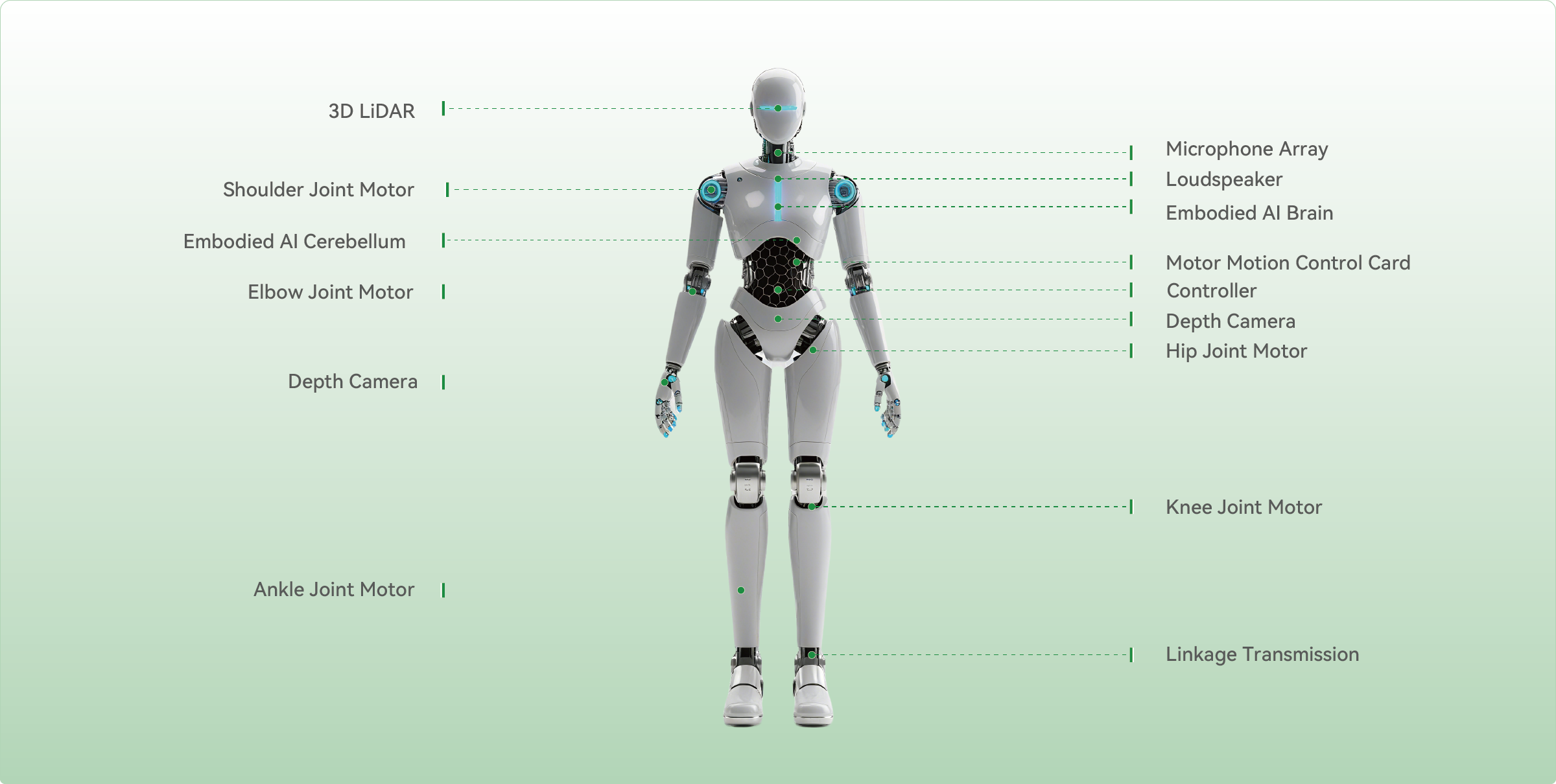

SENSOR CONFIGURATION
RELATED PRODUCTS
-

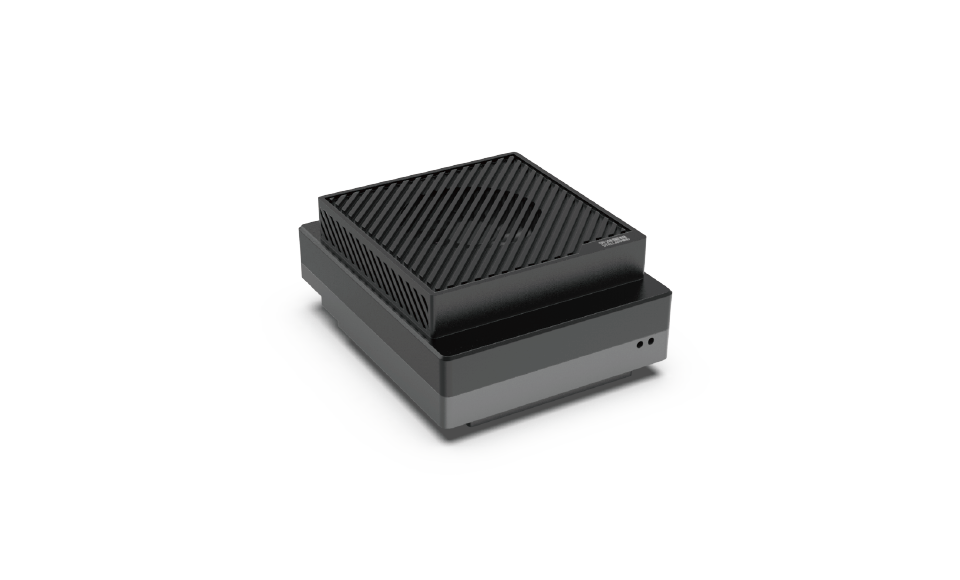

StellarMind 001Core Board Jetson AGX Orin AI Performance 275 TOPS/200 TOPS Memory 64GB/32GB Camera Port 4*GMSL/GMSL2(8 is available)
Gigabit Ethernet 4*independent Gigabit Ethernet(8 is available)
EtherCAT Supports EtherCAT as the main Station CAN/CANFD 4*CAN/CANFD 4G/5G 4G/5G USB 5*USB3.0(Type A) Cooling Method Air Cooling Power Supply DC: +10 V~+32 V Working Temp. -25℃~60℃ Storage Temp. -40℃~85℃ Size 169*173*74mm Weight ＜1.5kg Application Embodied Intelligence -

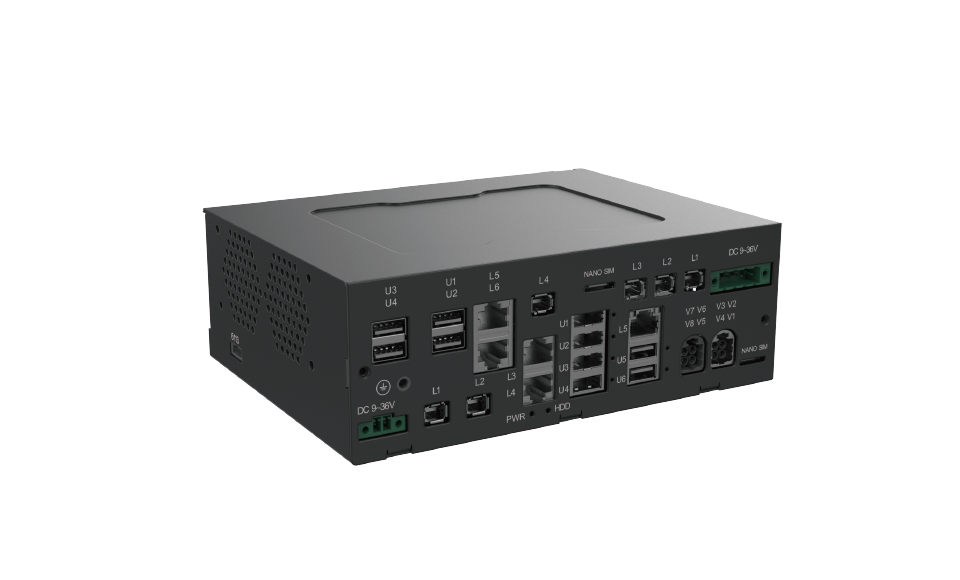

StellarMind 002Core Board Jetson AGX Orin AI Performance 275 TOPS/200 TOPS Memory 64GB/32GB Camera Port 8*GMSL2
Gigabit Ethernet 2*mini I/O, EtherCAT 3*RJ45
EtherCAT Supports EtherCAT as the main Station CAN/CANFD 2*CAN/CANFD 5G(4G) 5G(4G) USB 6*USB3.0(Type A) Cooling Method Air Cooling Power Supply DC: +9 V~+36 V Working Temp. -25℃~60℃ Storage Temp. -40℃~85℃ Size 188*141.2*78mm Weight ＜2.5kg Application Embodied Intelligence -
StellarMind 007Core Board Jetson Thor T5000 AI Performance 2070 TOPS Memory 128GB Camera Port 12*GMSL/GMSL2
Gigabit Ethernet 4*MINI IO, 2*RJ45, POE,1*RJ45 10GbE EtherCAT Supports EtherCAT as the main Station CAN/CANFD 4*CAN/CANFD 5G(4G) 5G(4G) USB Basic version：1*USB3.2+2*USB3.1 Extensive version：1*USB3.2+5*USB3.1 Cooling Method Air Cooling Power Supply DC: +9 V~+36 V Working Temp. -25℃~60℃ Storage Temp. -40℃~85℃ Size Basic version：140*130*30mm Extensive version：144*134*90mm Weight ＜2kg Application Embodied Intelligence
