Smartphone Glass Measurement
INDUSTRY CHALLENGES
-
01Tight dimensional tolerances for cover glass features such as openings and chamfers are critical to display bonding, sealing, and assembly quality.
-
02
Sampling inspection cannot meet high-volume production needs; 100% in-line inspection must keep pace with production.
-
03
High-volume production requires 100% in-line inspection rather than sampling inspection.
-
04
Small fields of view require repeated positioning to measure fine features, limiting throughput while maintaining high accuracy.
INDUSTRY SOLUTION
Smartphone cover and back glass require tight dimensional control for reliable display assembly, sealing, structural integrity, and functionality.

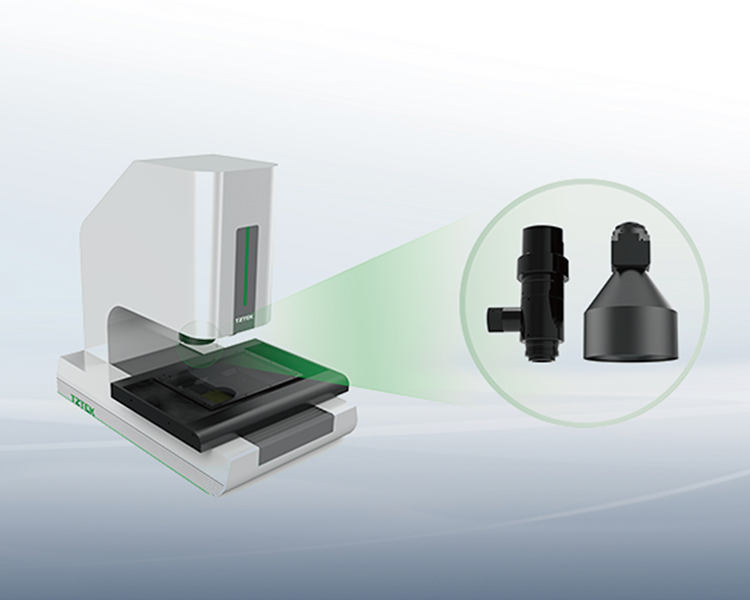

VMQ-D video measuring machine uses wide-field imaging optics for rapid measurement of overall dimensions.
Automatic zoom optics enable precise measurement of small features such as chamfers.
Combines wide-field and zoom optics to balance measurement accuracy and throughput.
KEY ADVANTAGES
-
Wide-field and automatic zoom optics enable fast measurement with precision inspection.
-
Multiple optical configurations support different part sizes and low-volume, high-mix production.
-
Supports in-line integration and production takt for consistent quality control across high-volume production.
