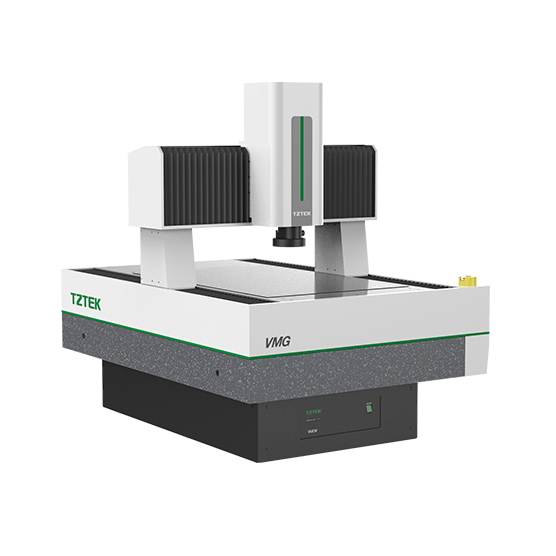

VMG Gantry Video Measuring Machine

VMG Gantry Video Measuring Machine is designed especially for large dimensions.

VMG adopts mobile bridge structure, the most advanced design concept and the strictest production control which ensure the accuracy and stability of the machines.

Scroll to explore

PRODUCT FEATURES

Stable Moving Platform
Gantry mobile bridge structure with large travel range enables silent measurement, efficiency and safety
Granite structure provides high precision and stability
Linear motor drive, smooth and reliable operation, acceleration of XY stage up to 1000mm/s²

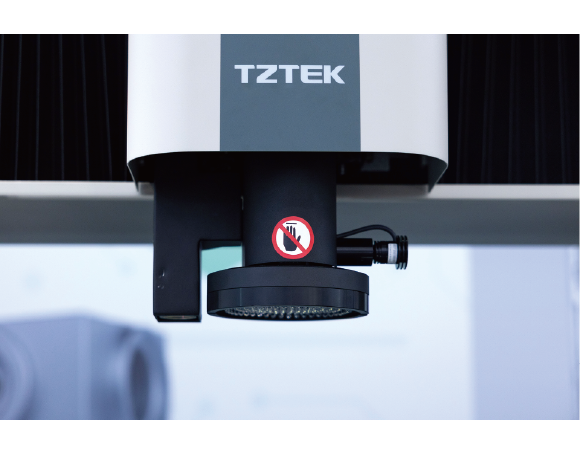

Rich Optical System with Automatic Measurement
Auto zoom lens with magnification 25-209×
Programmable 6 rings 8 segments surface light and profile light, available illumination configurations to meet different applications
Height measurement via auto-focusing
Flying-snap function(optional), increasing measurement efficiency 5-10 times
Optional movable joystick for simplified measurement programming and stage operation

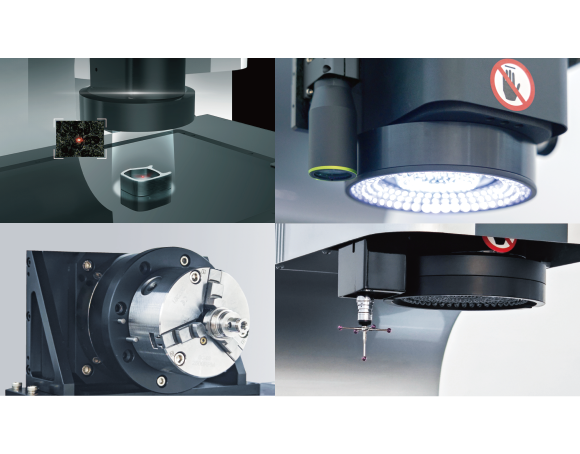

Rich Accessory Options
Optional coaxial light enhances optical illumination
Optional spectral displacement sensors to realize scanning and pointing measurement of height, flatness and other dimensions
Optional contact probe realize measurement of height, flatness, and other dimensions through Z-direction detection
Optional rotary table, manual/automatic clamping plate

PRODUCT SPECIFICATIONS

VMG452
VMG454
VMG684
VMG682
VMG8102
VMG8104
VMG10122
VMG12162
VMG12202

- Travel Range (mm)

  400 x 500 x 250
- Measuring Range (mm)

  400 x 500 x 210
- External Dimensions (mm)

  1255 x 1532 x 1747
- Weight (kg)

  1500
- More Information
- More Products
- Travel Range (mm)

  400 x 500 x 400
- Measuring Range (mm)

  400 x 500 x 400
- External Dimensions (mm)

  1230 x 1536 x 2022
- Weight (kg)

  1825
- More Information
- More Products
- Travel Range (mm)

  600 x 800 x 400
- Measuring Range (mm)

  600 x 800 x 400
- External Dimensions (mm)

  1290 x 1770 x 2022
- Weight (kg)

  2340
- More Information
- More Products
- Travel Range (mm)

  600 x 800 x 250
- Measuring Range (mm)

  600 x 800 x 210
- External Dimensions (mm)

  1290 x 1770 x 1660
- Weight (kg)

  1900
- More Information
- More Products
- Travel Range (mm)

  800 x 1000 x 250
- Measuring Range (mm)

  800 x 1000 x 210
- External Dimensions (mm)

  1490 x 1970 x 1660
- Weight (kg)

  2900
- More Information
- More Products
- Travel Range (mm)

  800 x 1000 x 400
- Measuring Range (mm)

  800 x 1000 x 400
- External Dimensions (mm)

  1700 x 2200 x 2052
- Weight (kg)

  3250
- More Information
- More Products
- Travel Range (mm)

  1000 x 1200 x 250
- Measuring Range (mm)

  1000 x 1200 x 210
- External Dimensions (mm)

  1915 x 2412 x 1777
- Weight (kg)

  3650
- More Information
- More Products
- Travel Range (mm)

  1200 x 1600 x 250
- Measuring Range (mm)

  1200 x 1600 x 210
- External Dimensions (mm)

  2115 x 2812 x 1777
- Weight (kg)

  4680
- More Information
- More Products
- Travel Range (mm)

  1200 x 2000 x 250
- Measuring Range (mm)

  1200 x 2000 x 210
- External Dimensions (mm)

  2115 x 3212 x 1777
- Weight (kg)

  5280
- More Information
- More Products

RELATED INDUSTRIES

Automotive

MEASUREMENT PLAN FOR AUTOMOTIVE

The automotive industry is undergoing a shift towards electrification and intelligence, with product iteration cycles significantly shortened. Batteries, motors, and electronic control systems have become the three core components of new vehicles.

Industry Case Studies

Measurement of Power Battery Electrode Sheets (VMG)
- Measurement Challenges

  Stacked cell batteries feature high energy density, long lifetime, high reliability, and fast charging. The internal structure consists of a series of positive electrode sheets, separators, and negative electrode sheets stacked together. These electrode sheets are slit from membrane materials into appropriate specifications, with the key focus on controlling the dimensions of the electrode sheets and the size of burrs generated during slitting. Larger metal burrs can pierce the separator, causing short circuits between the positive and negative electrodes.
- Solutions

  The battery electrode sheets can be placed on the workbench without precise alignment. The software can automatically identify the position and orientation of the electrode sheets, enabling fast dimensional measurement. Burrs are clearly visible on the display, replacing a microscope for its measurement.
RECOMMENDED PRODUCTS
Measurement of Motor Silicon Steel Sheets (VMC)
- Measurement Challenges

  Silicon steel sheets are essential components of motor rotors or stators, typically formed through stamping and stacking processes. The dimensional accuracy of silicon steel sheets must be strictly controlled.
- Solutions

  Silicon steel sheets can be placed on the workbench without requiring precise alignment. The software can automatically identifies the position and orientation of the sheets, enabling rapid dimensional measurement.
RECOMMENDED PRODUCTS
Measurement of Scroll Discs in Scroll Compressors (CMU)
- Measurement Challenges

  Scroll compressors, commonly used in automotive air conditioning systems, are known for their high efficiency, energy savings, low noise, high reliability, simple structure, compact size, light weight, and smooth operation. The core of the compressor consists of a fixed involute scroll disc and an eccentric, orbiting involute scroll disc, which together form the compression chamber. The machining accuracy of the scroll discs is crucial to the compressor's performance.
- Solutions

  The Coordinate Measuring Machine (CMM), equipped with a scanning probe, quickly completes full-size measurements of both static and dynamic scroll discs, including profile contours, wall thickness, perpendicularity, and other key dimensions.
RECOMMENDED PRODUCTS

GET MORE SOLUTIONS

MEASUREMENT PLAN FOR 3C

"3C" refers to Computers, Communication, and Consumer Electronics. Computers include laptops, desktops, tablets, printers, servers, hard disk drives, monitors, keyboards, mice, etc. Communication includes mobile phones, telephones, fax machines, modems, wireless routers, wireless networking devices, etc. Consumer Electronics include televisions, refrigerators, air conditioners, washing machines, vacuum cleaners, digital cameras, game consoles, home theaters, hair dryers, microwave ovens, rice cookers, electric ovens, air purifiers, energy-saving lamps, LED lights, Bluetooth headphones, Bluetooth speakers, etc. The 3C industry is characterized by large production volumes and rapid innovation cycles.

Industry Case Studies

Measurement of Film Materials (VMQ)
- Measurement Challenges

  Film materials play roles such as shock absorption, waterproofing, dustproofing, thermal insulation, and soundproofing in electronic products. They are typically formed using punching processes, which require high efficiency in dimensional measurement.
- Solutions

  For small-sized die-cut products, multiple products within a single field of view can be measured simultaneously. For large-sized die-cut products, moving a small platform is enough to complete the measurement of the entire product, significantly improving measurement efficiency.
RECOMMENDED PRODUCTS
Optical Module Measurement(VMU)
- Measurement Challenges

  Fiber optic communication has been widely applied in telecom networks, cable television networks, and the internet, all of which are closely related to people's lives. Optical modules are a critical part of fiber optic communication, responsible for converting optical signals. The placement accuracy of optical emitters and receivers in optical modules is crucial to reduce signal loss and interference, and to improve transmission efficiency and stability.
- Solutions

  Video measuring machine equipped with an automatic zoom lens with the advantage of a large field of view at low magnification, automatically locates products and identifies serial numbers. With high magnification, the high resolution allows precise measurement of the placement accuracy of optoelectronic devices. Products in trays can be measured in batches, and measurement data is automatically uploaded to the MES system.
RECOMMENDED PRODUCTS
Laptop Shell Intelligent Measurement(VMG)
- Measurement Challenges

  Laptop shells are typically made of magnesium-aluminum alloy, and CNC processing is the main forming method. During large-scale production, environmental factors (temperature, vibration), fluctuations in machine conditions, and tool wear would change the product features. Conventional vision-based measurement requires manual feature extraction, leading to low efficiency and high labor costs.
- Solutions

  During manual feature extraction, have the AI model embedded in the software and do the learning automatically. Once the learning process is complete, intelligent extraction of features and automated dimensional measurement can be achieved, significantly improving measurement efficiency and reducing labor costs.
RECOMMENDED PRODUCTS
Smartphone Glass Measurement(VMQ-D)
- Measurement Challenges

  Smartphone cover glass and back glass not only enhance the aesthetics and feel of the phone but also protect internal components, assist in heat dissipation, support signal transmission, and enable wireless charging. Strict dimensional requirements are needed for cover and back glass.
- Solutions

  Video measuring machine, using an automatic zoom lens in conjunction with a flash measurement lens. The flash lens, with its large field of view, quickly completes measurements of larger dimensions like the length and width of the glass. The zoom lens, with higher magnification, is used for measuring smaller dimensions, such as bevels, balancing measurement efficiency and precision.
RECOMMENDED PRODUCTS
Full-Dimensional Measurement of Mobile Phone Structural Components (CME)
- Measurement Challenges

  The smartphone frame, located between the front panel and rear cover, serves to fix and support internal components. The smartphone frame is typically made of metal or plastic, processed through multiple CNC and injection molding processes, resulting in a complex and intricate structure.
- Solutions

  The CMM (Coordinate Measuring Machine), equipped with a rotating measuring seat and touch probe, enables precise measurement of the all the features of smartphone frame parts throughout the entire manufacturing process, ensuring full-dimension precision.
RECOMMENDED PRODUCTS

GET MORE SOLUTIONS

Aerospace

MEASUREMENT PLAN FOR AEROSPACE

Aviation refers to navigation activities within the Earth's atmosphere, while spaceflight refers to navigation activities beyond it. Aviation vehicles primarily include airplanes, such as mainline aircraft, regional aircraft, general aviation planes, helicopters, drones, etc. Aerospace vehicles encompass satellites, spacecraft, and launch vehicles. The aerospace industry is characterized by a large variety of specifications and small production batches.

Industry Case Studies

Aerospace Connectors Measurement(VME)
- Measurement Challenges

  Aerospace connectors are designed with waterproof, dustproof, and anti-loosening properties to meet the demanding requirements of aerospace and other harsh environments. To ensure reliable electrical connections, the critical dimensions of the aerospace connectors must be strictly controlled.
- Solutions

  Video measuring machine can quickly measure key dimensions of the aerospace connectors, including the shell diameter, bayonet size, bayonet angle, pin diameter and position, and socket diameter and position. It can also measure the outer dimensions of the pins and holes. The components can be placed on the workbench without precise alignment and the software can automatically recognize the position and orientation of the product and perform automatic measurements, offering ease of operation and high measurement efficiency.
RECOMMENDED PRODUCTS
Engine Blade Measurement(CMU)
- Measurement Challenges

  The compressor and turbine are the core components of a turbojet engine. The compressor uses high-speed rotating blades to do work on the air, increasing its pressure. The turbine blades convert the energy from high-temperature, high-pressure gases exiting the combustion chamber into mechanical energy to drive the compressor, fan, propeller, and other components. The blades are numerous, complex in shape, require high precision, and are difficult to manufacture, making them a critical part of aerospace engine production. The shape accuracy of the blades significantly impacts the efficiency of the compressor or turbine.
- Solutions

  The Coordinate Measuring Machine (CMM), equipped with a rotary table, scanning probe, and specialized software modules, enables high-precision and rapid measurement of compressor blades and turbine blades.
RECOMMENDED PRODUCTS
