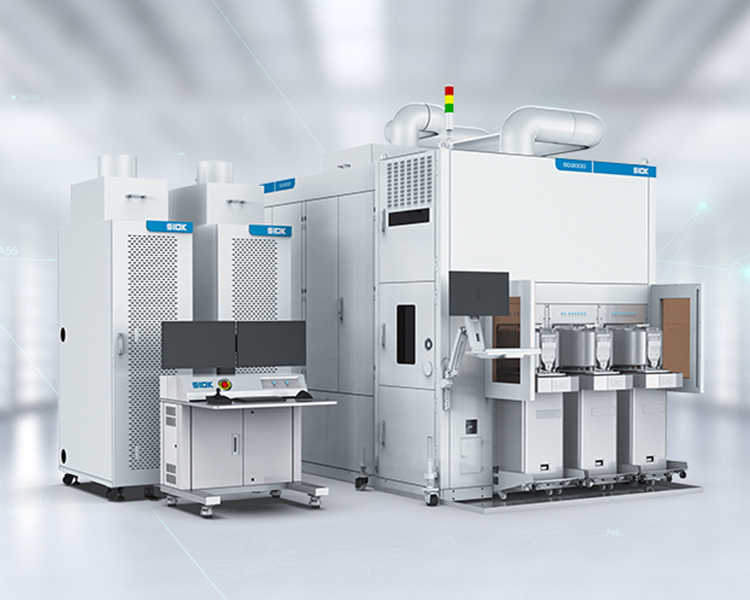

Darkfield Inspection


INDUSTRIAL SOLUTION

  • Supports a 266 nm inspection wavelength to significantly improve sensitivity to small defects.

  • Enables high-precision ROI placement, improves defect SNR, and suppresses noise from non-critical areas.

  • GDS-based ROI definition improves ROI accuracy, enhances defect SNR, and suppresses noise from non-critical areas.

  • Advanced AI algorithms further optimize defect signal analysis.

  • Combines a high-speed motion stage with HPC to accelerate wafer handling and data processing, increasing overall WPH throughput for high-volume manufacturing.

KEY ADVANTAGES

  • 1.svg

    GDS ROI Technology: Higher ROI accuracy with lower inspection noise.

  • 带AI标.svg

    AI Algorithms & Data Analytics: Intelligent inspection, noise suppression, and support for diverse applications.

  • 2.svg

    High-Speed Motion stage: Faster motion improves overall inspection throughput.
