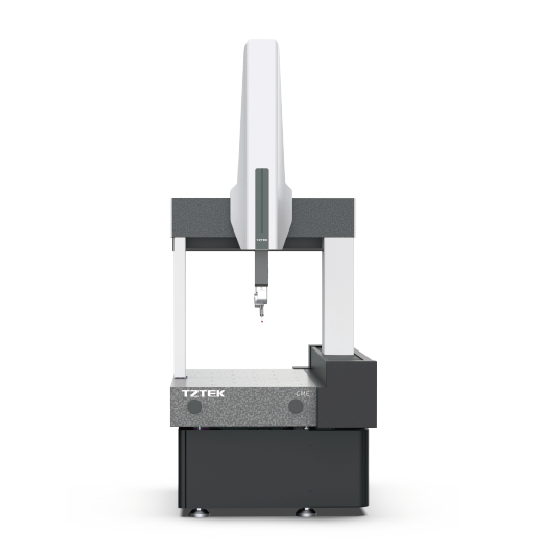

CME Economic Coordinate Measuring Machine

CME adopts stable rectangular beam structure to increase the rigidity of the structure, and the structure of the moving bridge design to ensure high efficiency and high precision measurement. CME series is designed to meet the user's basic needs for 3D measurements, with high precision, versatility, automation, flexibility, etc.

CME provides stable and efficient measurement solutions for the production site and R & D centers. It is widely used in machinery manufacturing, mold manufacturing, automotive industry, electronic industry and other fields.

Scroll to explore

PRODUCT FEATURES

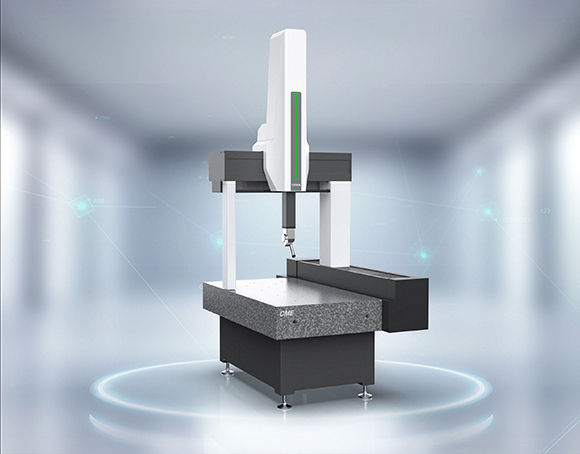

Classic Structure Design
CAE-assisted design analysis reduces the deviation of structural design, improves the stability of the structure, and ensures the long-term stability of accuracy
The classic moving bridge design is simple, compact, open and fast moving, providing high efficient and high accuracte measurements

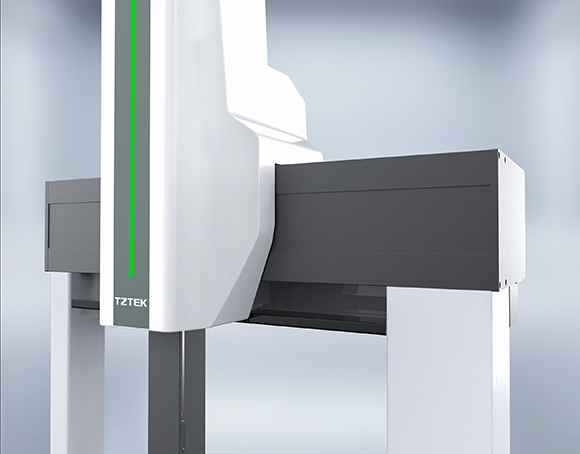

High Stability
All three axes are made of granite to ensure a consistent coefficient of expansion
The unique rectangular beam structure is adopted to increase the rigidity of the structure and ensure that the machine is fast, smooth and precise
Highly rigid high-performance air-bearing guides, frictionless and wear-free, and all three axes are designed with a four-side encircling design to effectively ensure stability

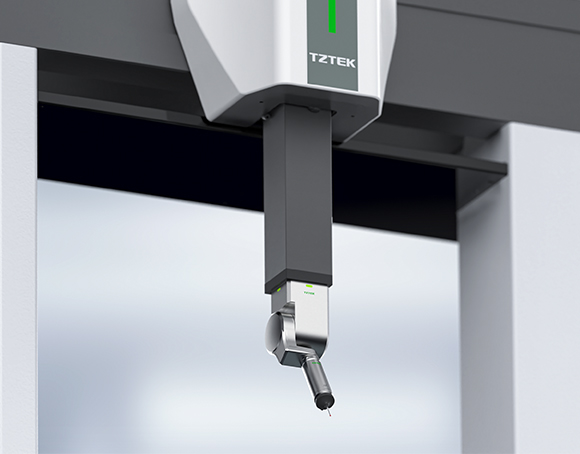

Safety
The Z-axis adopts a balanced cylinder, which ensures the consistency of the up and down movement of the Z-axis, and also ensures the safety of the detection system in case of emergency

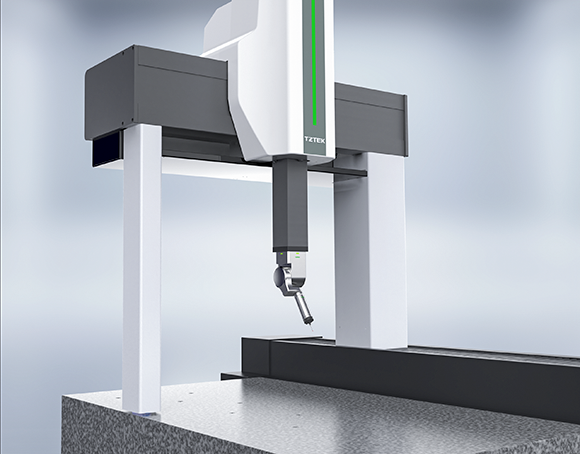

High Economy
The three axes are driven by servo motors. The motors are arranged at the far end of all axes, effectively avoiding the effect of heat arising from their operation on the local temperature of the measuring machine.
In-house Design with Better Compaibility
In-house TCC motion controller

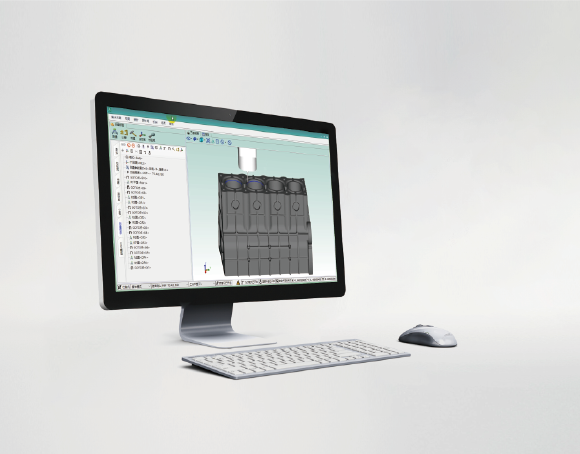

Vispec Cube passed the highest accuracy Class 1 (0.1 μm, 0.1") certification of German PTB
Compatible with HSP fixed scanning probe & CSP compact scanning probe
Compatible with TR50 articulated head

PRODUCT SPECIFICATIONS

CME575
CME686
CME8106
CME10128
CME10158
CME10208
CME121510
CME122210

- Travel Range (mm)

  500×700×500
- External Dimensions (mm)

  1040×1450×2480
- Weight (kg)

  850
- More Information
- More Products
- Travel Range (mm)

  600×800×600
- External Dimensions (mm)

  1150×1800×2725
- Weight (kg)

  1280
- More Information
- More Products
- Travel Range (mm)

  800×1000×600
- External Dimensions (mm)

  1350×2000×2725
- Weight (kg)

  1700
- More Information
- More Products
- Travel Range (mm)

  1000×1200×800
- External Dimensions (mm)

  1676×2273×3130
- Weight (kg)

  2670
- More Information
- More Products
- Travel Range (mm)

  1000×1500×800
- External Dimensions (mm)

  1676×2573×3130
- Weight (kg)

  3070
- More Information
- More Products
- Travel Range (mm)

  1000×2000×800
- External Dimensions (mm)

  1676×3073×3130
- Weight (kg)

  3970
- More Information
- More Products
- Travel Range (mm)

  1200×1500×1000
- External Dimensions (mm)

  1876×2773×3600
- Weight (kg)

  4100
- More Information
- More Products
- Travel Range (mm)

  1200×2200×1000
- External Dimensions (mm)

  1876×3473×3600
- Weight (kg)

  5800
- More Information
- More Products
