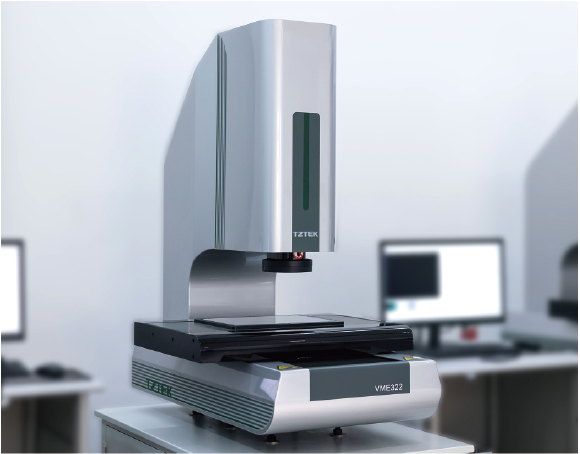

VME Economy Video Measuring Machine

VME Economy Video Measuring Machine develops for basic is designed to meet basic metrology requirements with auto zoom lens, which can meet various measuring requirements.

Scroll to explore

PRODUCT FEATURES

Rich Optical System
Auto zoom lens with magnification 25-160×

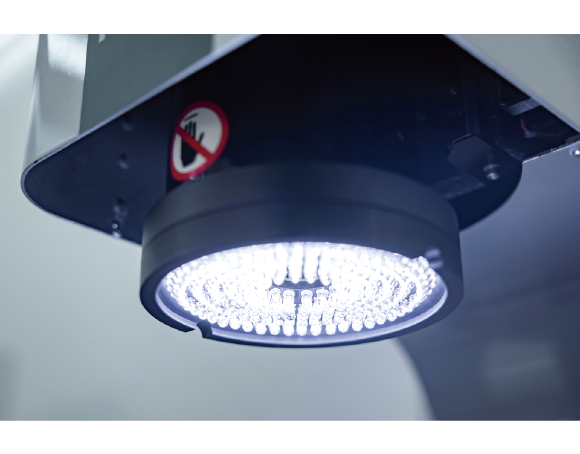

Programmable 6 rings 8 segments surface light, profile light, abundant illumination configurations to meet different applications
Height measurement via auto-focusing
Stable Moving Platform
Granite structure that provides high precision and stability
High-precision linear rails and high-resolution scales ensures measurement accuracy

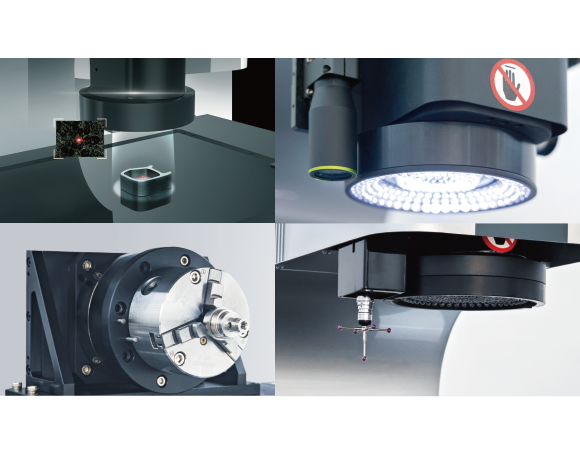

Wide Range of Accessory Options
Optional coaxial light enhances optical illumination
Optional spectral displacement sensors to realize scanning and pointing measurement of height, flatness and other dimensions
Optional contact probe realize measurement of height, flatness, and other dimensions through Z-direction detection

PRODUCT SPECIFICATIONS

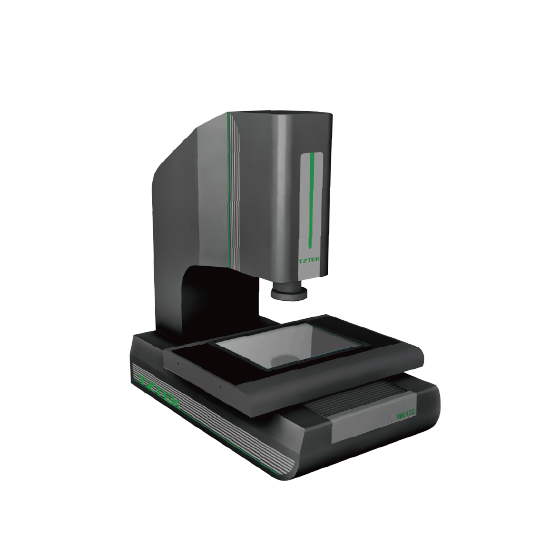

VME222
VME322
VME432
VME433
VME542

- Travel Range (mm)

  200×200×200
- Measuring Range (mm)

  200×200×135
- External Dimensions (mm)

  740×1040×1762
- Weight (kg)

  330
- More Information
- More Products
- Travel Range (mm)

  300×200×200
- Measuring Range (mm)

  300×200×135
- External Dimensions (mm)

  740×1040×1762
- Weight (kg)

  330
- More Information
- More Products
- Travel Range (mm)

  400×300×200
- Measuring Range (mm)

  400×300×135
- External Dimensions (mm)

  800×1240×1762
- Weight (kg)

  420
- More Information
- More Products
- Travel Range (mm)

  400×300×300
- Measuring Range (mm)

  400×300×280
- External Dimensions (mm)

  800×1240×1966
- Weight (kg)

  440
- More Information
- More Products
- Travel Range (mm)

  500×400×200
- Measuring Range (mm)

  500×400×135
- External Dimensions (mm)

  1000×1440×1762
- Weight (kg)

  500
- More Information
- More Products
