Precision Measurement for Optical Module Assembly
INDUSTRY CHALLENGES
-
01Assembly tolerances are tightening from ±3 μm to sub-micron levels, demanding higher-precision metrology.
-
02
High-volume manufacturing is shifting from sampling-based inspection to fully automated in-line inspection.
-
03
MES integration, full-process traceability, and SPC analytics demand stronger system integration and advanced data handling capabilities.
INDUSTRY SOLUTION

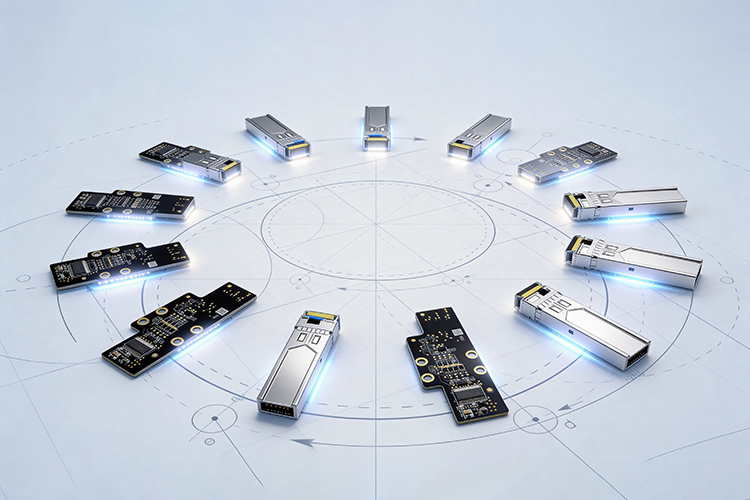

High-speed optical modules are critical to AI data-center connectivity. As data rates scale, tighter placement tolerances and process control are required for optical module assembly.

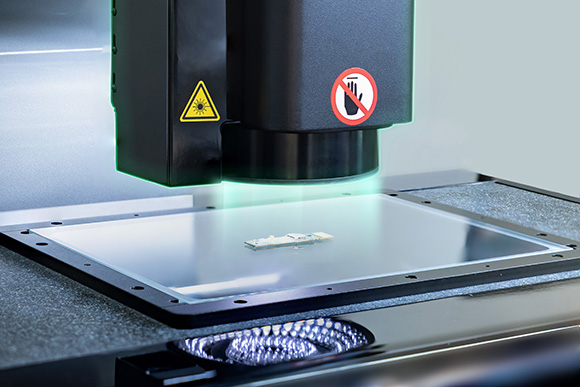

TZTEK's vision measurement system combines wide-field, low-magnification imaging for rapid part positioning and ID recognition with high-resolution imaging for precise optoelectronic component placement measurement.
Automated tray measurement enables high-throughput inspection of multiple modules without manual handling.
MES connectivity enables automated data upload, quality traceability, and digital production control.
KEY ADVANTAGES
-
High-resolution, low-distortion optics automatically identify part position and orientation, allowing flexible tray loading.
-
Fully automated measurement eliminates manual intervention and maximizes inspection throughput.
-
MES connectivity enables closed-loop production data management.
-
Standardized interfaces support seamless in-line integration.
