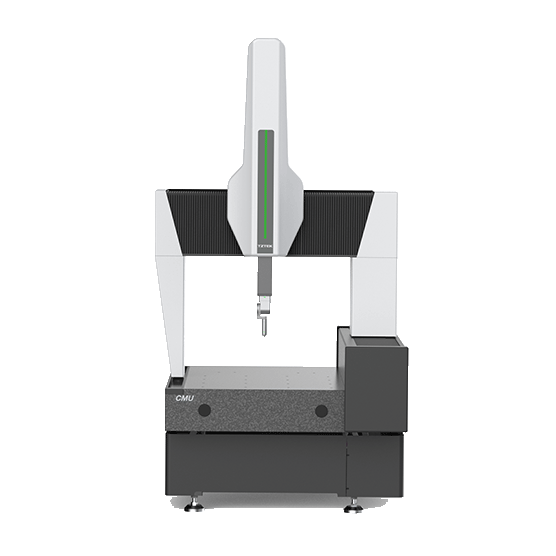

CMU Ultra Coordinate Measuring Machine

CMU high-precision coordinate measuring machine is a high-end measuring equipment produced by TZTEK. It adopts the form of single-side elevated structure, which makes the moving mass lighter and effectively improves the motion performance as well as the stability of accuracy.

The use of linear motors provides higher measuring speed and acceleration while ensuring accuracy, which can meet the measurement needs of complex parts with excellent accuracy, high efficiency and stable performance, helping to realize precision machining, assembly and quality control. It can be applied in automobile manufacturing, medical industry, electronics industry and other fields.

Scroll to explore

PRODUCT FEATURES

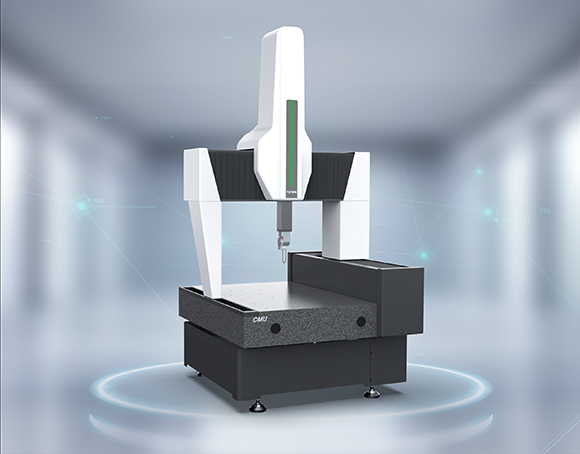

Excellent Structure Design
CAE-assisted design analysis reduces the deviation of structural design, improves the stability of the structure, and ensures the long-term stability of accuracy
High-rigidity, high-performance air-bearing guidance system ensures friction-free and wear-free operation. All three axes adopt a four-sided enclosure design, complemented by an air pressure monitoring function to effectively guarantee stability.

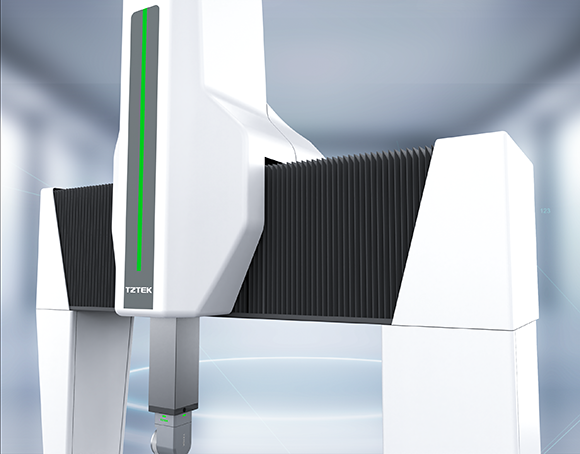

Outstanding Stability
The key structural parts are made of high-precision silicon carbide ceramics, which makes the mobile bridge lighter in mass while having higher rigidity and lower temperature linear expansion. This greatly improves accuracy and long-term reliability
Ultra-low thermal expansion coefficient glass scales are employed on all three axes, making them insensitive to temperature fluctuations and achieving nanometer-level resolution, which significantly enhances the overall machine accuracy

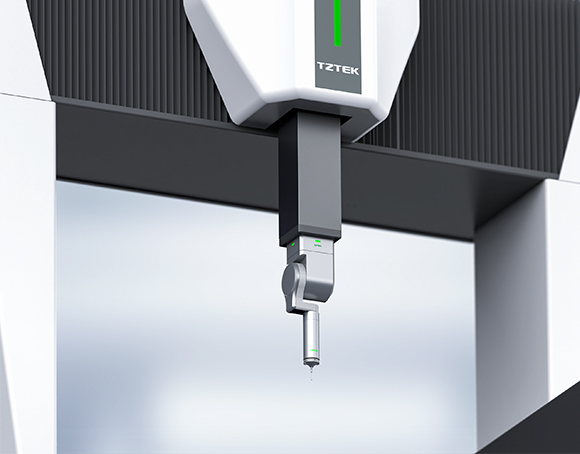

Safety
The Z-axis is equipped with two protective mechanisms - pneumatic logic protection via a balancing cylinder and hardware braking protection - ensuring the safety of the probing system in emergency situations
A fully enclosed surrounding frame design provides operational safety and reduces maintenance costs
In-house Design with Better Compaibility
Innovatice linear motor drive techology with TCC motion controller
Vispec Cube passed the highest accuracy Class 1 (0.1 μm, 0.1") certification of German PTB
Compatible with HSP fixed scanning probe & CSP compact scanning probe
Compatible with TR50 articulated head

PRODUCT SPECIFICATIONS

CMU686
CMU8106
CMU10128
CMU10158
CMU10208
CMU121510
CMU122010
CMU152012
CMU152512
CMU153012

- Travel Range (mm)

  600×800×600
- External Dimensions (mm)

  1330×1460×2810
- Weight (kg)

  1500
- More Information
- More Products
- Travel Range (mm)

  800×1000×600
- External Dimensions (mm)

  1530×1660×2810
- Weight (kg)

  1960
- More Information
- More Products
- Travel Range (mm)

  1000×1200×800
- External Dimensions (mm)

  1730 x 1860×3160
- Weight (kg)

  2500
- More Information
- More Products
- Travel Range (mm)

  1000×1500×800
- External Dimensions (mm)

  1730×2160×3160
- Weight (kg)

  3100
- More Information
- More Products
- Travel Range (mm)

  1000×2000×800
- External Dimensions (mm)

  1730×2660×3160
- Weight (kg)

  4000
- More Information
- More Products
- Travel Range (mm)

  1200×1500×1000
- External Dimensions (mm)

  2300×2940×3640
- Weight (kg)

  5000
- More Information
- More Products
- Travel Range (mm)

  1200×2000×1000
- External Dimensions (mm)

  2300×3440×3640
- Weight (kg)

  6000
- More Information
- More Products
- Travel Range (mm)

  1500×2000×1200
- External Dimensions (mm)

  2600×3440×3940
- Weight (kg)

  8000
- More Information
- More Products
- Travel Range (mm)

  1500×2500×1200
- External Dimensions (mm)

  2600×3940×3940
- Weight (kg)

  9500
- More Information
- More Products
- Travel Range (mm)

  1500×3000×1200
- External Dimensions (mm)

  2600×4440×3940
- Weight (kg)

  11000
- More Information
- More Products
