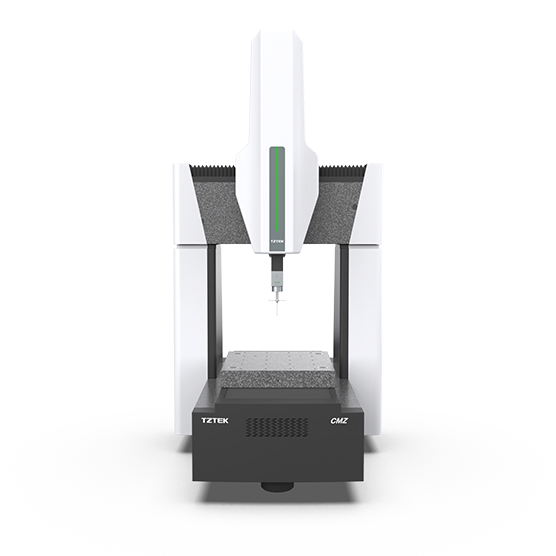

CMZ Zenith Coordinate Measuring Machine

PRODUCT FEATURES

•

  Excellent Structure Design

  • The high-rigid fixed-bridge mechanical structure, as well as the combination of granite beams, granite bases,granite columns and Z-axie made of industrial precision material silicon carbide ceramic, ensures the highstability of the mechanical structure and the strong resistance against external interference


  • The mobile working platform adopts double dovetail air-float guide rails to ensure good stability




•

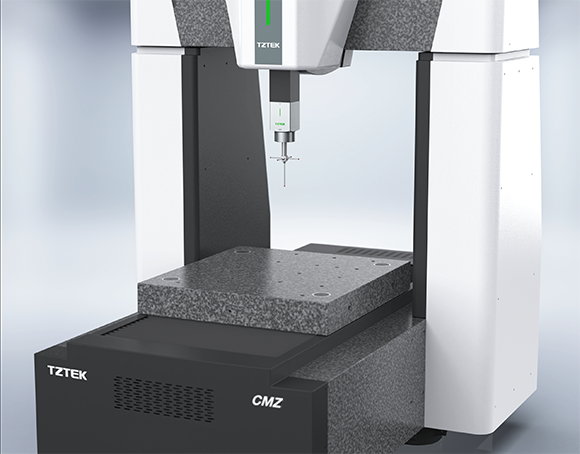

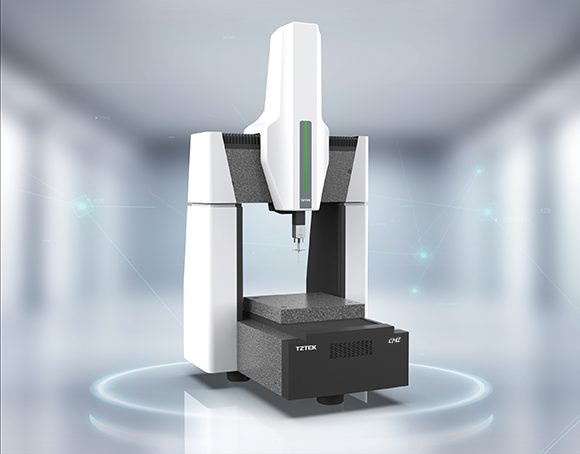

  Outstanding Stability

  • The SiC ceramic Z-axis, with its low coefficient of thermal expansion, high rigidity and light weight, ensures the stability of the measuring system and improves the motion performance

  • The use of preloaded air bearings in each axis and the circular layout provide high rigidity, no contact, low friction, and low wear, which effectively maintains the machine's lifetime and reduces the number of occurrences of measurement uncertainty

  • Adopting zero expansion coefficient scale, the resolution is ultra-high to reach the nanometer level, and it is not affected by the external temperature, which ensures the high precision and stability of the machine




•

  Safety

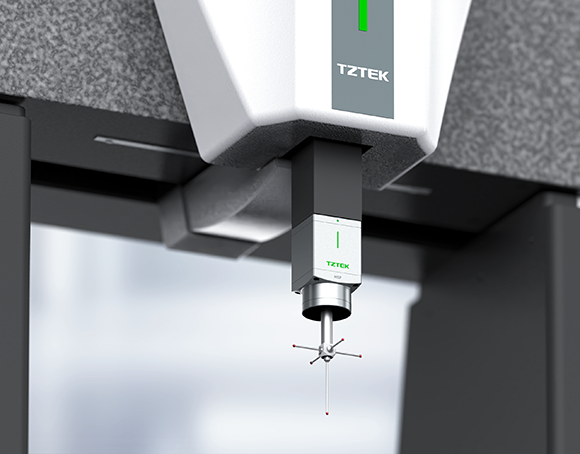

  • Z-axis adopts flexible balance cylinder to ensure the reliability of Z-axis movement

  • The Z-axis counterbalance cylinders are equipped with two protection mechanisms, pneumatic logic protection and hardware hold-up protection, to ensure the safety of the probing system in case of emergency




•

  Metrological Accuracy

  • Sub-micron measurement accuracy due to its excellent system design

•

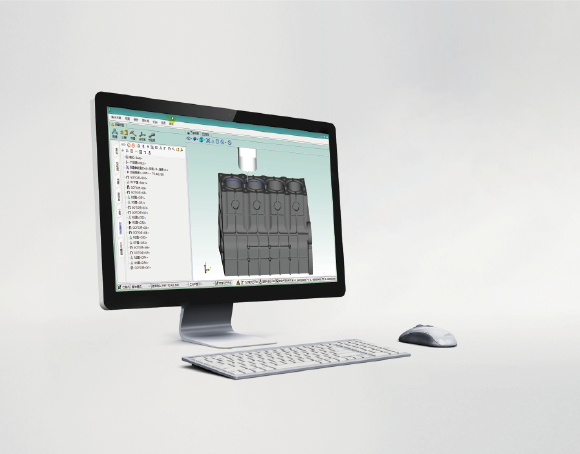

  In-house Design with Better Compaibility

  • Innovatice linear motor drive techology with TCC motion controller

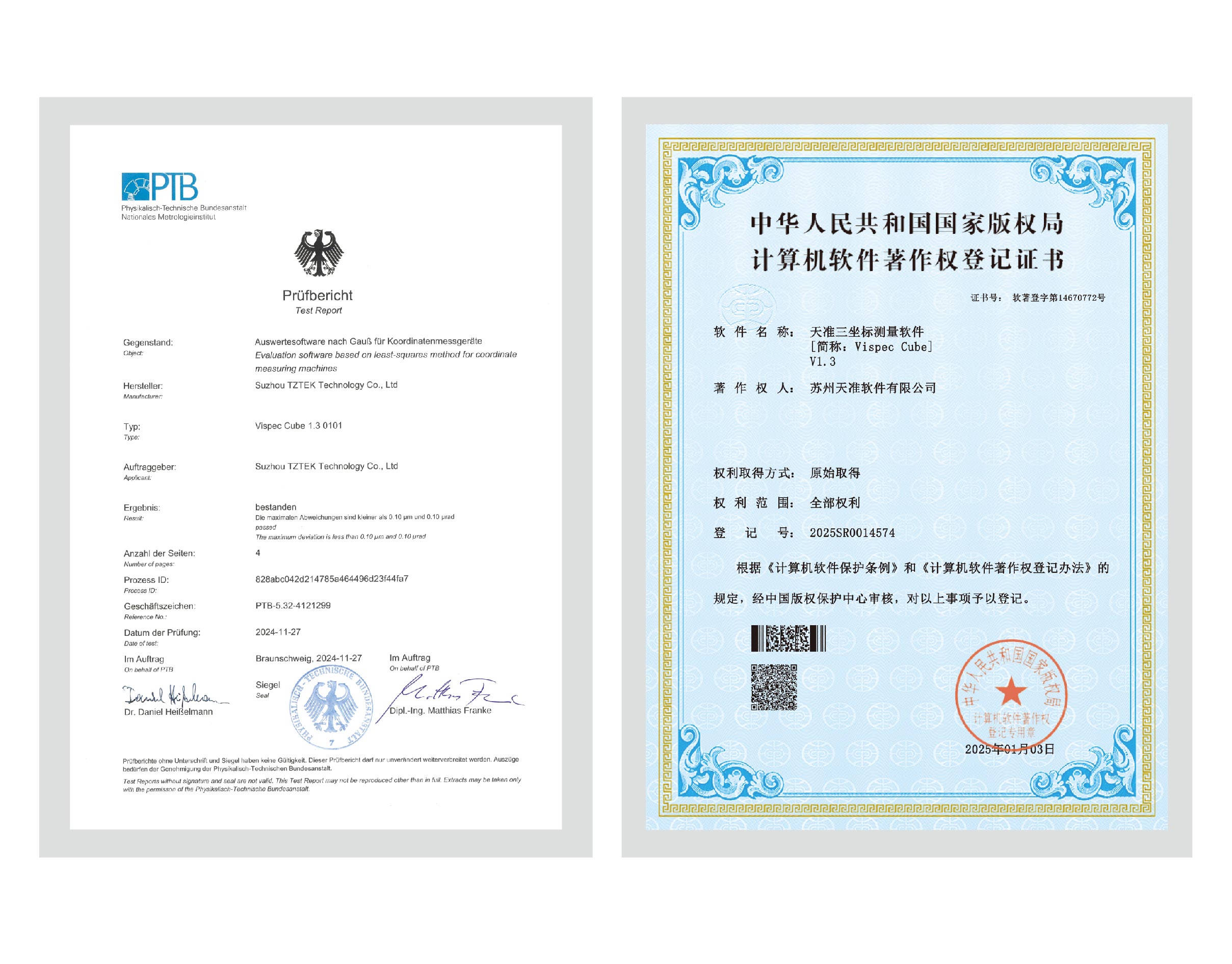

  • Vispec Cube passed the highest accuracy Class 1 (0.1 μm, 0.1") certification of German PTB

  • Compatible with HSP fixed scanning probe & CSP compact scanning probe

  • Compatible with TR50 articulated head
