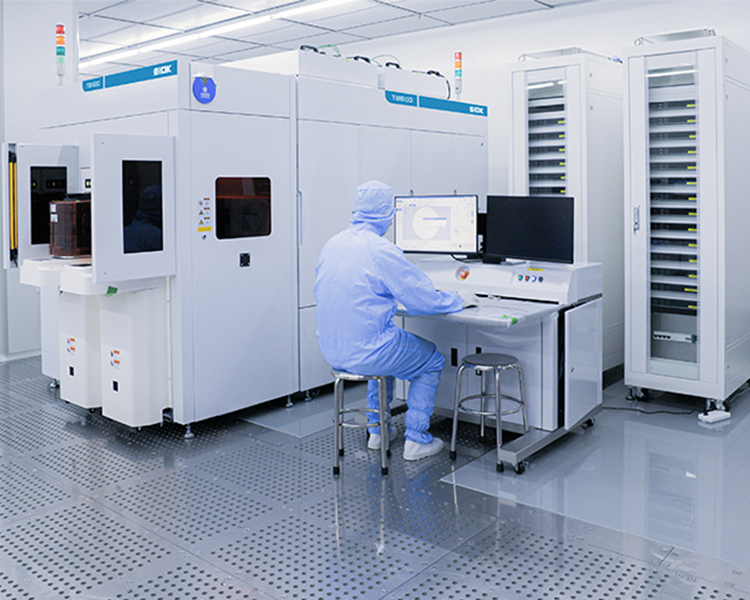

Brightfield Inspection


INDUSTRY SOLUTION

Designed to meet the stringent inspection requirements of advanced logic processes, TZTEK's brightfield defect inspection solution integrates multiple proprietary technologies to deliver high-sensitivity, high-efficiency, and process-adaptive inspection.

  • CMO continuous zoom technology supports a minimum inspection pixel size of 36 nm for enhanced small-defect detection. A 3 × 3 pixel high-precision scan region delivers flexible in-line pattern inspection with >90% effective inspection area, improving detection accuracy while reducing noise.

  • The system supports multi-material optical simulation and full-wave time-domain simulation based on actual process structures, covering wavelengths from 260–600 nm to optimize inline inspection.

  • A high-speed motion stage synchronizes continuous motion with TDI to reduce step-and-settle time. Combined with HPC, it improves overall data processing and inspection efficiency.

KEY ADVANTAGES

  • 带AI标.svg

    AI Algorithms & Data Analytics: Intelligent inspection, noise suppression, and support for diverse applications.

  • 1.svg

    Optical Simulation & Design: Professional simulation engines and comprehensive material libraries enable rapid optical design iteration and optimization.

  • 2.svg

    High-Speed Precision Motion Stage: Optimized acceleration performance significantly improves overall inspection throughput.

  • 3.svg

    GDS ROI Technology: Higher ROI accuracy with lower inspection noise.
