Automatic LDI Line

The TZTEK Automatic LDI Line features proprietary dual-machine and single-machine dual-table configurations for high-volume rigid and flexible PCB production. Compatible with a wide range of dry- and wet-film processes for both circuit pattern and solder mask imaging, it delivers efficient, continuous manufacturing.
The rigid PCB line delivers throughput of up to 10,000 panels/day. For flexible PCB applications, the system supports both 2-up and 4-up panel configurations, achieving throughput of up to 9,000 panels/day.

Training Certificate Inquiry

Scroll to explore

Advantages

  • Intelligent Automation

  • Broad Compatibility

  • High Productivity

  • Intelligent Automation

    Four-axis robotic loading and unloading with integrated transfer and panel flipping

    Seamless integration with upstream and downstream production equipment for unattended operation

  • Broad Compatibility

    Supports rigid and flexible PCB production

    Compatible with both dry- and wet-film processes

  • High Productivity

    Rigid PCB line: up to 10,000 panels/day

    Flexible PCB line: up to 9,000 panels/day

PRODUCT SPECIFICATIONS

  • Dual-Machine Dual-Table Automatic LDI Line (Rigid PCB)

  • Single-Machine Dual-Table Automatic LDI Line (Rigid PCB)

  • Single-Machine Dual-Table Automatic LDI Line (Flexible PCB)

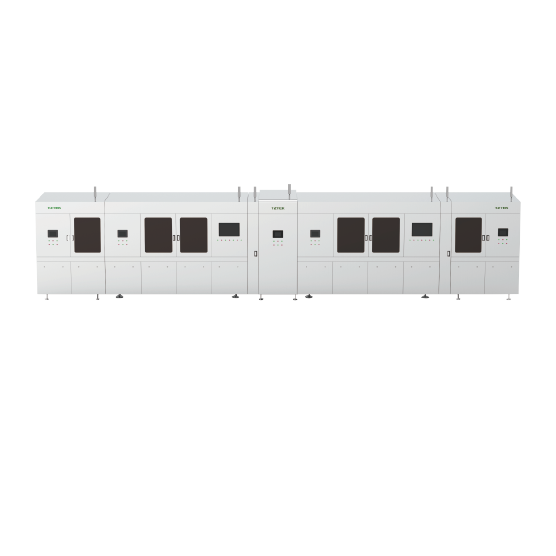

    • 556×556_双机双台面-57.png

    • 01

      In-house design and manufacturing

    • 02

      Supports circuit pattern and solder mask imaging for rigid PCBs

    • 03

      Compatible with dry films and liquid photoresists.

    • 04

      Up to 10,000 panels/day

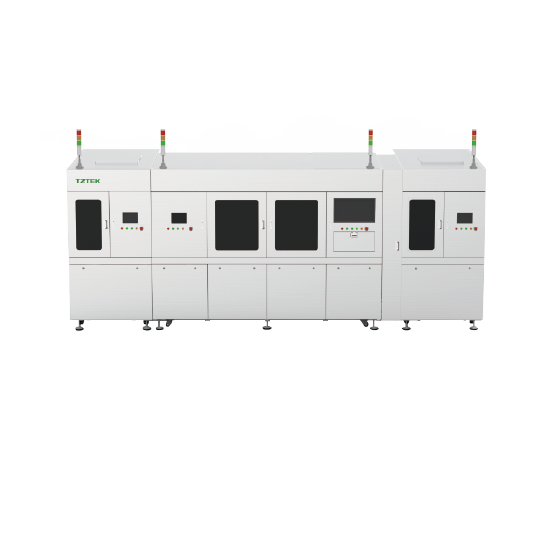

    • 556×556_单机双台面（硬板）.png

    • 01

      Supports circuit pattern and solder mask imaging for rigid PCBs

    • 02

      Compatible with dry films and liquid photoresists

    • 03

      Up to 6,000 panels/day

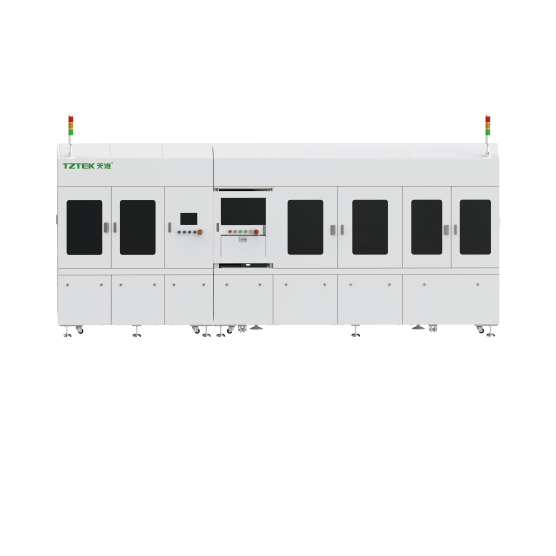

    • 556×556_单机双台面（软板）.png

    • 01

      Flexible board circuit and solder mask processing supported

    • 02

      Up to 9,000 panels/day (4-up panel configuration)

    • 03

      Up to 8,000 panels/day (2-up panel configuration)
