Smartphone Structural Component Measurement
ADDRESSING INDUSTRY CHALLENGES
-
01High-volume production requires automated in-line inspection that meets production cycle times.
-
02
Excessive probe force can deform delicate features and compromise measurement accuracy.
-
03
Dense, multi-angle features require frequent probe reorientation, making path planning and measurement programming complex and time-consuming.
INDUSTRY SOLUTION

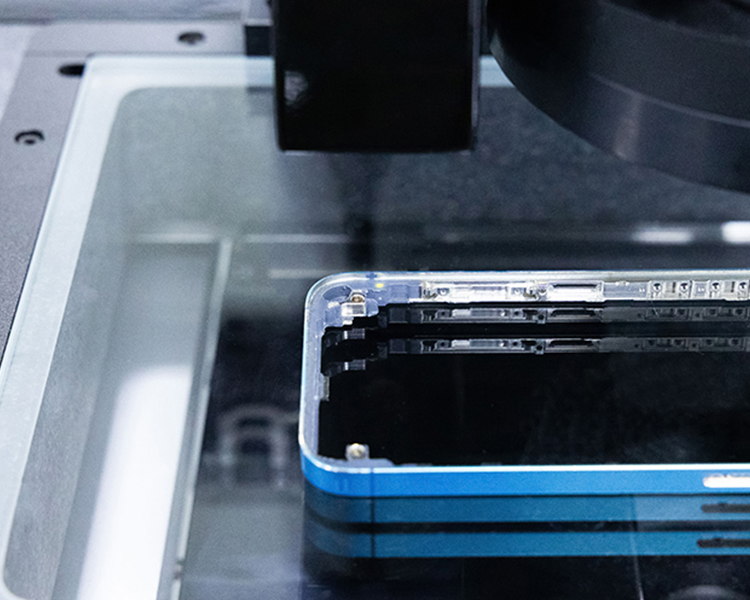

Smartphone mid-frames feature complex geometries and tight dimensional tolerances, with manufacturing processes including CNC machining and injection molding.
TZTEK’s CMM with a rotary probe head and low-force probe enables comprehensive, high-precision measurement of complex mid-frame features throughout the manufacturing process.
KEY ADVANTAGES
-
Fully in-house developed CMM with proprietary core technologies.
-
MES integration for closed-loop production data management.
-
Intuitive metrology software with a low learning curve.
-
Standardized interfaces for fast integration with automated production lines.
