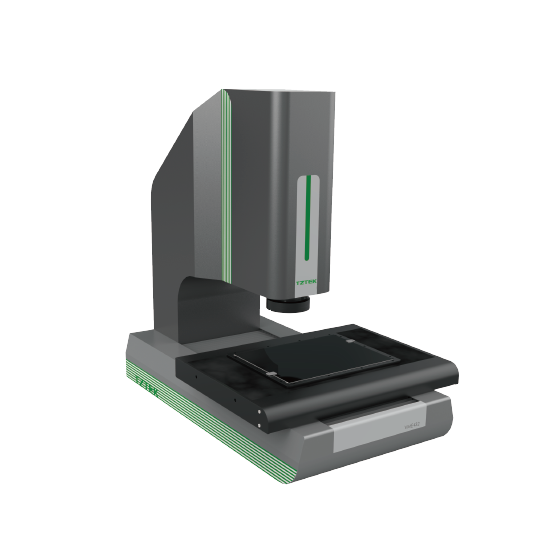

VME Economy Video Measuring Machine

VME Economy Video Measuring Machine is designed for basic metrology requirements.

It is equipped with an auto zoom lens that can accommodate a wide range of measurement tasks.

Scroll to explore

PRODUCT FEATURES

Rich Optical System
Auto zoom lens with magnification25-160×
Programmable 6 rings 8 segments surface light, profile light, abundant illumination configurations to meet different applications
Height measurement via auto-focusing
Stable Moving Platform
Granite structure that provides high precision and stability
High-precision linear rails and high-resolution scales ensures measurement accuracy
Wide Range of Accessory Options
Optional coaxial light enhances optical illumination
Optional spectral displacement sensors to realize scanning and pointing measurement of height, flatness and other dimensions
Optional contact probe realize measurement of height, flatness, and other dimensions through Z-direction detection

PRODUCT SPECIFICATIONS

VME222
VME322
VME432
VME433
VME542

- Travel (mm)

  200 x 200 x 200
- Measuring Range (mm)

  200 x 200 x 135
- External Dimensions (mm)

  740 x 1040 x 1762
- Weight (kg)

  330
- More Information
- Travel (mm)

  300 x 200 x 200
- Measuring Range (mm)

  300 x 200 x 135
- External Dimensions (mm)

  740 x 1040 x 1762
- Weight (kg)

  330
- More Information
- Travel (mm)

  400 x 300 x 200
- Measuring Range (mm)

  400 x 300 x 135
- External Dimensions (mm)

  800 x 1240 x 1762
- Weight (kg)

  420
- More Information
- Travel (mm)

  400 x 300 x 300
- Measuring Range (mm)

  400 x 300 x 280
- External Dimensions (mm)

  800 x 1240 x 1966
- Weight (kg)

  440
- More Information
- Travel (mm)

  500 x 400 x 200
- Measuring Range (mm)

  500 x 400 x 135
- External Dimensions (mm)

  1000 x 1440 x1762
- Weight (kg)

  500
- More Information

RELATED INDUSTRIES

Medical & Healthcare

MEASUREMENT PLAN FOR MEDICAL & HEALTHCARE

The medical and healthcare industry is crucial for safeguarding people's health and life safety, playing a vital role in social development, with its development direction focused on high-end, precision, and intelligence. This industry is characterized by rapid technological advancements and diverse market demands, with related products typically having numerous specifications and small production batches.

Industry Case Studies

Film Material Measurement
- Measurement Challenges

  Vascular stents are typically made from metal or polymer mesh structures and are placed in narrow or occluded blood vessels to maintain blood flow. They are widely used in the treatment of vascular diseases, including coronary arteries, intracranial arteries, carotid arteries, renal arteries, and femoral arteries. The key dimensions of a vascular stent include diameter, wall thickness, wire diameter, and length.
- Solutions

  Quick video measuring machine enables rapid and precise measurement of key dimensions of vascular stents, offering easy operation and good applicability. It can also replace microscopes for defect detection.
RECOMMENDED PRODUCTS
Film Material Measurement
- Measurement Challenges

  An anastomosis device, used as a replacement for manual suturing, utilizes titanium staples to join tissue, similar to a stapler. It is widely used in thoracic, gastrointestinal, hepatobiliary, and urological surgeries. The anastomosis device consists of parts such as the anvil, stapling chamber, shaft, handle, battery compartment, and knob. To ensure the device's performance, it is crucial to control the dimensional accuracy of key components.
- Solutions

  Video measuring machine can be used to rapidly measure the dimensions of key features such as the distance between the anvil's surface protrusions and the length or spacing of holes in the stapling chamber, with convenient operation and good applicability.
RECOMMENDED PRODUCTS
Film Material Measurement
- Measurement Challenges

  A microfluidic chip controls fluid at the micrometer scale and integrates basic laboratory functions (sample preparation, reaction, separation, detection, etc.) on a few square centimeters of chip surface. It offers advantages such as low sample or reagent consumption, high efficiency with multiple testing channels, low contamination due to isolated channels, portability, and low reliance on specialized medical staff. It has broad application prospects in biomedical research, drug development, environmental monitoring, and health quarantine. The specifications of microfluidic chips are varied, and the channel dimensions are the key control items.
- Solutions

  Video measuring machin equipped with a spectral confocal sensor, uses the optical system to identify and locate the microfluidic chip product, and measure channel widths and the dimensions of sample or reaction wells. Under the guidance of the spectral confocal sensor, it measures the channel depth and flatness of the sample or reaction wells. The system provides high precision, fast speed, and broad product applicability.
RECOMMENDED PRODUCTS
Film Material Measurement
- Measurement Challenges

  Artificial joints are used to replace damaged human joints and restore joint movement functionality. For example, a total hip joint replacement includes four components: the acetabular cup, liner, femoral head, and femoral stem. The acetabular cup and femoral head form the joint surface, while the liner covers the inside of the acetabular cup and contacts the femoral head to reduce friction and wear. The dimensional accuracy of the mating parts is critical, as it affects the patient's experience and joint longevity.
- Solutions

  The coordinate measuring machine (CMM) performs full-size measurement of artificial joint components, such as the groove or profile of the acetabular cup, acetabular depth and inner diameter, the outer shape of the liner (length, width, angle), the diameter or roundness of the femoral head, and the contour of the femoral stem.
RECOMMENDED PRODUCTS

GET MORE SOLUTIONS

Machinery

MEASUREMENT PLAN FOR MACHINERY

The machinery industry is the foundation of the national economy. It not only shapes people's modes of production, lifestyles, and social development but also serves as a key indicator of a country's overall competitiveness.

Industry Case Studies

Film Material Measurement
- Measurement Challenges

  A pump is a type of general-purpose machinery primarily used to transport fluids or increase fluid pressure. Pump casings usually have complex shapes, and some dimensions cannot be measured with optical system, while a coordinate measuring machine can perform full-size measurements but the efficiency is relatively low.
- Solutions

  Use video measuring machines equipped with a contact probe. The data from the probe and the optical system can be combined within the same measurement space. Using both types of probes together allows for fast and high-precision measurements.
RECOMMENDED PRODUCTS
Film Material Measurement
- Measurement Challenges

  Enclosures are common mechanical parts that feature characteristics on multiple sides. When using a video measuring machine, manual flipping is required, which is inefficient and labor-intensive.
- Solutions

  Use video measuring machines equipped with a rotary worktable. After measuring one side, the rotary worktable turns the part automatically to measure the next side, improving measurement efficiency without requiring manual labor.
RECOMMENDED PRODUCTS
Film Material Measurement
- Measurement Challenges

  Seal rings are essential components in fluid machinery, particularly in high-pressure or vacuum applications, where sealing requirements are stringent. The specifications of seal rings are diverse, and they are produced in large quantities. Additionally, they are made of soft materials that can deform easily.
- Solutions

  Use quick video measuring machines configured with a dedicated measurement function for seal rings. Seal rings of various sizes can be placed randomly within the field of view, and all measurements can be completed with a single click. Even if the seal rings deform into non-circular shapes, accurate measurements can still be obtained.
RECOMMENDED PRODUCTS
Film Material Measurement
- Measurement Challenges

  Screw compressors are known for their high efficiency, low vibration, low noise, compact size, and light weight, making them widely used in industrial production, transportation, refrigeration, medical equipment, and more. The screw is the core component, and the machining accuracy of the screw directly affects the performance of the compressor.
- Solutions

  The coordinate measuring machine (CMM), equipped with a high-precision rotary worktable. The table's synchronized movement completes fast and accurate measurement of the screw profile.
RECOMMENDED PRODUCTS

GET MORE SOLUTIONS

MEASUREMENT PLAN FOR 3C

"3C" refers to Computers, Communication, and Consumer Electronics. Computers include laptops, desktops, tablets, printers, servers, hard disk drives, monitors, keyboards, mice, etc. Communication includes mobile phones, telephones, fax machines, modems, wireless routers, wireless networking devices, etc. Consumer Electronics include televisions, refrigerators, air conditioners, washing machines, vacuum cleaners, digital cameras, game consoles, home theaters, hair dryers, microwave ovens, rice cookers, electric ovens, air purifiers, energy-saving lamps, LED lights, Bluetooth headphones, Bluetooth speakers, etc. The 3C industry is characterized by large production volumes and rapid innovation cycles.

Industry Case Studies

Film Material Measurement
- Measurement Challenges

  Film materials play roles such as shock absorption, waterproofing, dustproofing, thermal insulation, and soundproofing in electronic products. They are typically formed using punching processes, which require high efficiency in dimensional measurement.
- Solutions

  For small-sized die-cut products, multiple products within a single field of view can be measured simultaneously. For large-sized die-cut products, moving a small platform is enough to complete the measurement of the entire product, significantly improving measurement efficiency.
RECOMMENDED PRODUCTS
Film Material Measurement
- Measurement Challenges

  Fiber optic communication has been widely applied in telecom networks, cable television networks, and the internet, all of which are closely related to people's lives. Optical modules are a critical part of fiber optic communication, responsible for converting optical signals. The placement accuracy of optical emitters and receivers in optical modules is crucial to reduce signal loss and interference, and to improve transmission efficiency and stability.
- Solutions

  Video measuring machine equipped with an automatic zoom lens with the advantage of a large field of view at low magnification, automatically locates products and identifies serial numbers. With high magnification, the high resolution allows precise measurement of the placement accuracy of optoelectronic devices. Products in trays can be measured in batches, and measurement data is automatically uploaded to the MES system.
RECOMMENDED PRODUCTS
Film Material Measurement
- Measurement Challenges

  Laptop shells are typically made of magnesium-aluminum alloy, and CNC processing is the main forming method. During large-scale production, environmental factors (temperature, vibration), fluctuations in machine conditions, and tool wear would change the product features. Conventional vision-based measurement requires manual feature extraction, leading to low efficiency and high labor costs.
- Solutions

  During manual feature extraction, have the AI model embedded in the software and do the learning automatically. Once the learning process is complete, intelligent extraction of features and automated dimensional measurement can be achieved, significantly improving measurement efficiency and reducing labor costs.
RECOMMENDED PRODUCTS
Film Material Measurement
- Measurement Challenges

  Smartphone cover glass and back glass not only enhance the aesthetics and feel of the phone but also protect internal components, assist in heat dissipation, support signal transmission, and enable wireless charging. Strict dimensional requirements are needed for cover and back glass.
- Solutions

  Video measuring machine, using an automatic zoom lens in conjunction with a flash measurement lens. The flash lens, with its large field of view, quickly completes measurements of larger dimensions like the length and width of the glass. The zoom lens, with higher magnification, is used for measuring smaller dimensions, such as bevels, balancing measurement efficiency and precision.
RECOMMENDED PRODUCTS
Film Material Measurement
- Measurement Challenges

  The smartphone frame, located between the front panel and rear cover, serves to fix and support internal components. The smartphone frame is typically made of metal or plastic, processed through multiple CNC and injection molding processes, resulting in a complex and intricate structure.
- Solutions

  The CMM (Coordinate Measuring Machine), equipped with a rotating measuring seat and touch probe, enables precise measurement of the all the features of smartphone frame parts throughout the entire manufacturing process, ensuring full-dimension precision.
RECOMMENDED PRODUCTS
