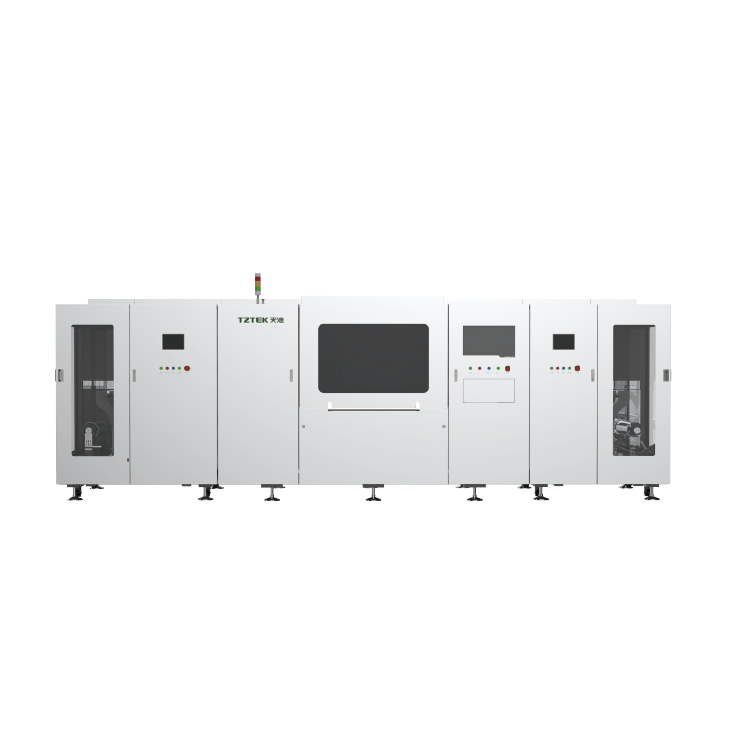

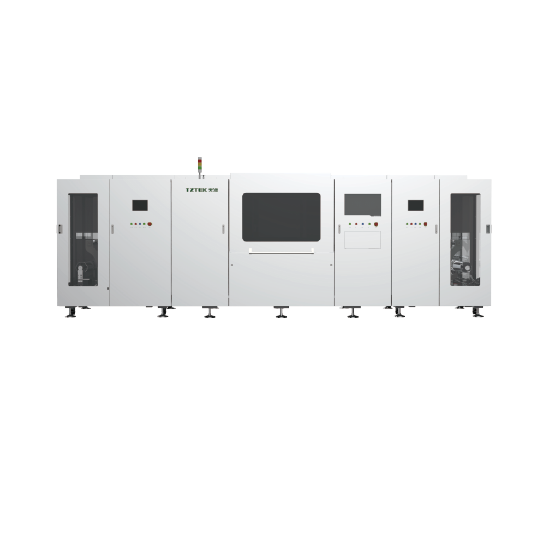

Roll-to-Roll LDI Equipment

Designed to overcome the challenges of roll-to-roll processing, the TZDI series features a ultra-precision gantry motion control platform delivering submicron accuracy.

Its reliable constant tension control system ensures process consistency, while the innovative OnePass design dramatically enhances throughput—balancing exceptional quality with high efficiency. Ideal for circuit patterning on FPC (0.2 - 6 m).

Training Certificate Inquiry

Scroll to explore

Advantages

High Precision
Broad Applicability
High Throughput
Smart System

High Precision

Submicron-level accuracy
Advanced calibration and compensation algorithms
Broad Applicability

For double-sided/multi-layer rigid PCBs, HDI, FPC and IC substrates
Roll-to-roll and panel-to-roll processing supported
High Throughput

Up to 5 m/min production speed
Large exposure table significantly reduces splicing
Smart System

Customizable MES for real-time monitoring
PC/mobile alerts and notifications

PRODUCT SPECIFICATIONS

TZDI-12R
TZDI-20R
TZDI-25R
TZDI-35R

- Platform Type

  Single-table
- Maximum Exposure Area

  200 - 1500 mm
- Substrate Thickness

  0.036-0.25 mm
- Minimum Line Width/Spacing

  12/12 μm
- Typical Production Line Width/Spacing

  25/25 μm
- Line Width Tolerance

  ±10%
- Alignment Accuracy

  ±8 μm
- Process Uniformity

  ≥95%
- Depth of Field

  ±100 μm
- Throughput

  210 sides/hour (single-sided panel sized 520 × 610 mm @30 mJ/cm²)
- Recommended Applications

  FPC
- Equipment Dimensions

  4.52×1.55×1.8 m
- Equipment Weight

  5.3 t
- More Information
- Platform Type

  Single-table
- Maximum Exposure Area

  200 - 3000 mm
- Substrate Thickness

  0.036-0.25 mm
- Minimum Line Width/Spacing

  20/20 μm
- Typical Production Line Width/Spacing

  35/35 μm
- Line Width Tolerance

  ±10%
- Alignment Accuracy

  ±9 μm
- Process Uniformity

  ≥95%
- Depth of Field

  ±150 μm
- Throughput

  4 m/min (single-sided panel sized 250× 1500 mm @30 mJ/cm²)
- Recommended Applications

  FPC
- Equipment Dimensions

  5.12×1.55×1.8 m
- Equipment Weight

  5.3 t
- More Information
- Platform Type

  Single-table
- Maximum Exposure Area

  200 - 6000 mm
- Substrate Thickness

  0.036-0.25 mm
- Minimum Line Width/Spacing

  25/25 μm
- Typical Production Line Width/Spacing

  40/40 μm
- Line Width Tolerance

  ±10%
- Alignment Accuracy

  ±10 μm
- Process Uniformity

  ≥95%
- Depth of Field

  ±200 μm
- Throughput

  4.8 m/min (single-sided panel sized 250× 2000 mm @30 mJ/cm²)
- Recommended Applications

  FPC
- Equipment Dimensions

  5.84×1.55×1.8 m
- Equipment Weight

  5.3 t
- More Information
- Platform Type

  Single-table
- Maximum Exposure Area

  200 - 6000 mm
- Substrate Thickness

  0.036-0.25 mm
- Minimum Line Width/Spacing

  35/35 μm
- Typical Production Line Width/Spacing

  50/50 μm
- Line Width Tolerance

  ±10%
- Alignment Accuracy

  ±12 μm
- Process Uniformity

  ≥95%
- Depth of Field

  ±300 μm
- Throughput

  5 m/min (single-sided panel sized 250× 2000 mm @30 mJ/cm²)
- Recommended Applications

  FPC
- Equipment Dimension

  5.84×1.55×1.8 m
- Equipment Weight

  5.3 t
- More Information
