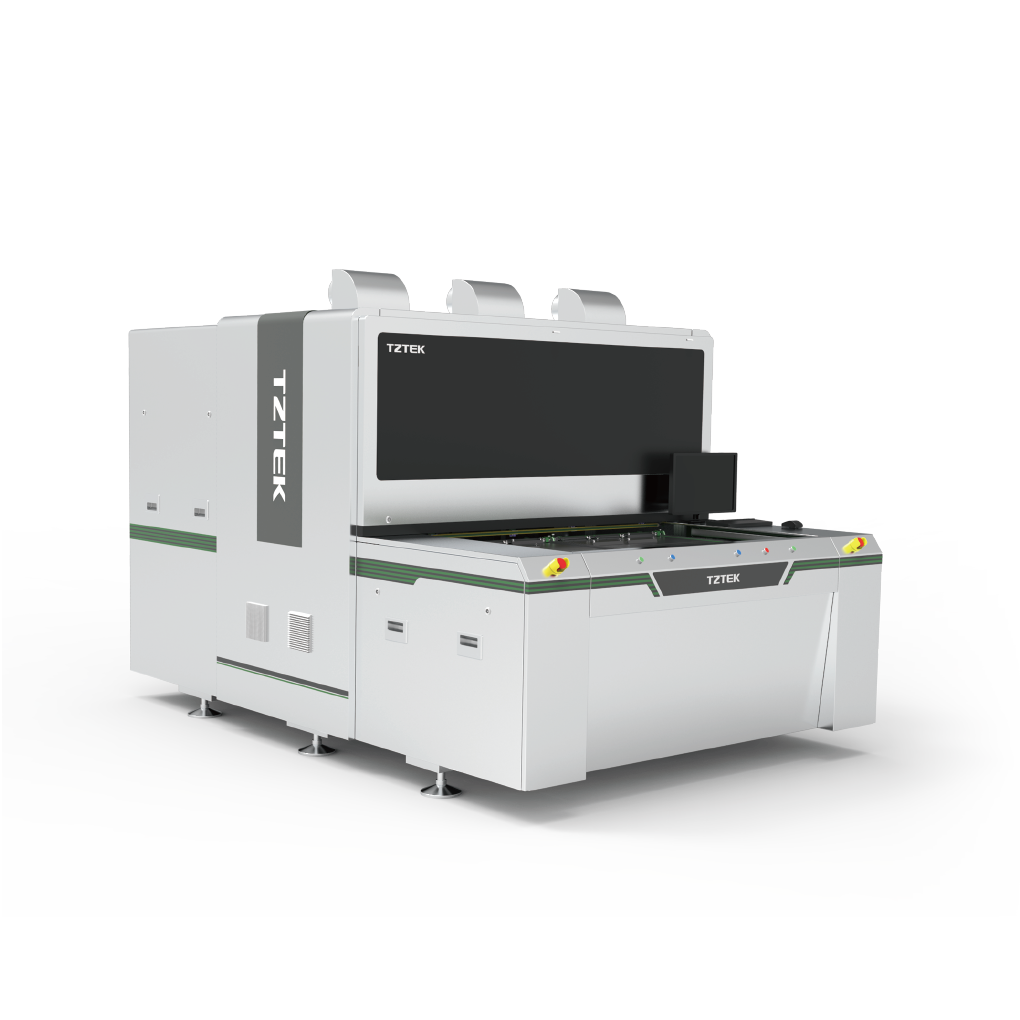

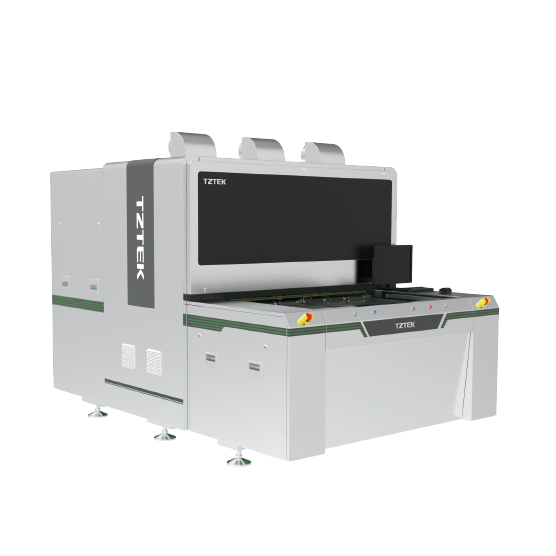

Patterning LDI Equipment

TZDI Patterning Laser Direct Imaging (LDI) Equipment features a sub-micron precision motion control stage, next-gen DMD, and advanced optical imaging.

Enhanced by TZTEK's proprietary vision, calibration, and compensation algorithms, it delivers superior imaging quality, throughput, and alignment accuracy. Ideal for patterning in applications such as MLB, HDI, FPC.

Training Certificate Inquiry

Scroll to explore

Advantages

High Precision
Advanced Functionality
High Throughput
Smart System

High Precision

Alignment accuracy: ±5 μm
Minimum line width/spacing: 4/4 μm
Advanced Functionality

Zone alignment & shrinkage compensation
Automated accuracy measurement
Real-time energy fluctuation compensation, reducing manual intervention
High Throughput

30% faster data processing with next-gen DMD control technology
50% faster alignment via high-speed flying exposure
Equipped with a high-power laser up to 100W
Smart System

Customizable MES for real-time equipment monitoring
PC/mobile alerts and notifications

PRODUCT SPECIFICATIONS

TZDI-40
TZDI-35
TZDI-25
TZDI-12

- Platform Type

  Dual-table
- Maximum Exposure Area

  630 mm × 810 mm
- Substrate Thickness

  0.025 - 6 mm
- Minimum Line Width/Spacing

  40 μm
- Typical Production Line Width/Spacing(μm)

  60 μm
- Line Width Tolerance

  ±10%
- Alignment Accuracy

  ±12 μm
- Interlayer Registration Accuracy

  24 μm
- Depth of Field

  ±300 μm
- Single-Machine Throughput

  8.5 s/side @20 mJ/cm²
- Automatic Line Throughput

  7 s/pnl @20 mJ/cm²
- Recommended Applications

  MLB (inner & outer layers), Ceramic Substrate
- More Information
- Platform Type

  Dual-table
- Maximum Exposure Area

  630 mm × 810 mm
- Substrate Thickness

  0.025 - 6 mm
- Minimum Line Width/Spacing

  35 μm
- Typical Production Line Width/Spacing

  50 μm
- Line Width Tolerance

  ±10%
- Alignment Accuracy

  ±10 μm
- Interlayer Registration Accuracy

  20 μm
- Depth of Field

  ±300 μm
- Single-Machine Throughput

  8.5 s/side @20mj/cm²
- Automatic Line Throughput

  7 s/ pnl @20mj/cm²
- Recommended Applications

  MLB (inner & outer layers), Ceramic Substrate
- More Information
- Platform Type

  Dual-table
- Maximum Exposure Area

  630 mm × 850 mm
- Substrate Thickness

  0.025 to 6 mm
- Minimum Line Width/Spacing

  25 μm
- Typical Production Line Width/Spacing

  40 μm
- Line Width Tolerance

  ±10%
- Alignment Accuracy

  ±10 μm
- Interlayer Registration Accuracy

  20 μm
- Depth of Field

  ±200 μm
- Single-Machine Throughput

  10 s/side @20mj/cm²
- Automatic Line Throughput

  8 s/pnl @20mj/cm²
- Recommended Applications

  MLB(inner & outer layers), HDI
- More Information
- Platform Type

  Dual-table
- Maximum Exposure Area

  630 mm × 810 mm
- Substrate Thickness

  0.025 to 6 mm
- Minimum Line Width/Spacing

  12 μm
- Typical Production Line Width/Spacing

  20 μm
- Line Width Tolerance

  ±10%
- Alignment Accuracy

  ±7 μm
- Interlayer Registration Accuracy

  16 μm
- Depth of Field

  ±150 μm
- Single-Machine Throughput

  12 s/side @20mj/cm²
- Automatic Line Throughput

  12 s/pnl @20mj/cm²
- Recommended Applications

  IC Substrate, SLP
- More Information
