Advanced Passenger Vehicles

For advanced assisted driving, including high-speed NOA (Navigate on Autopilot) and urban NOA for passenger vehicles, TZTEK offers solutions based on Horizon Journey ®5 and Journey ®6 chip series, including intelligent driving domain controllers and comprehensive system integration services.

SHOWCASE OF DOMESTICALLY PRODUCED ADVANCED INTELLIGENT DRIVING
SOLUTIONS

  • 01
    Active Safety

    Automatic Emergency Braking(AEB)

    Lane Keeping Assist(LKA)

    Emergency Lane Keeping(ELK)

    Pedestrian Collision Warning(PCW)

  • 02
    Highway NOA

    Automatic On/Off Ramp Navigation

    Sharp Curve Ramp Negotiation

    Congested Traffic Merging/Exiting

    Toll Gate Passage

    Obstacle Avoidance for Accidents/Roadwork

  • 03
    Urban NOA Lite

    Traffic Light Recognition and Passage

    Unprotected Left/Right Turn

  • 04
    Parking Scenarios

    Multi-type Parking Space Identification

    Real-time Visual Positioning

    Memory Parking In/Out

    Low-speed Emergency Braking

    Dynamic Path Planning

ADVANTAGES AND
CHARACTERISTICS

  • Solution Advantages

  • Product Reliability

  • Technical Services

  • Solution Advantages

    Exceptional Cost-Effectiveness

    Efficient Service and Technical Support Response

  • Product Reliability

    Compliance with Functional Safety and Information Security Standards

    Built on Extensive Corner Case Expertise

    Key Components Sourced Domestically, Ensuring Secure Supply Chains

  • Technical Services

    Algorithm Migration Services Across Multiple Platforms

    Custom Development Tailored to Customer Requirements

    Supports ISP and Other System Integration Services

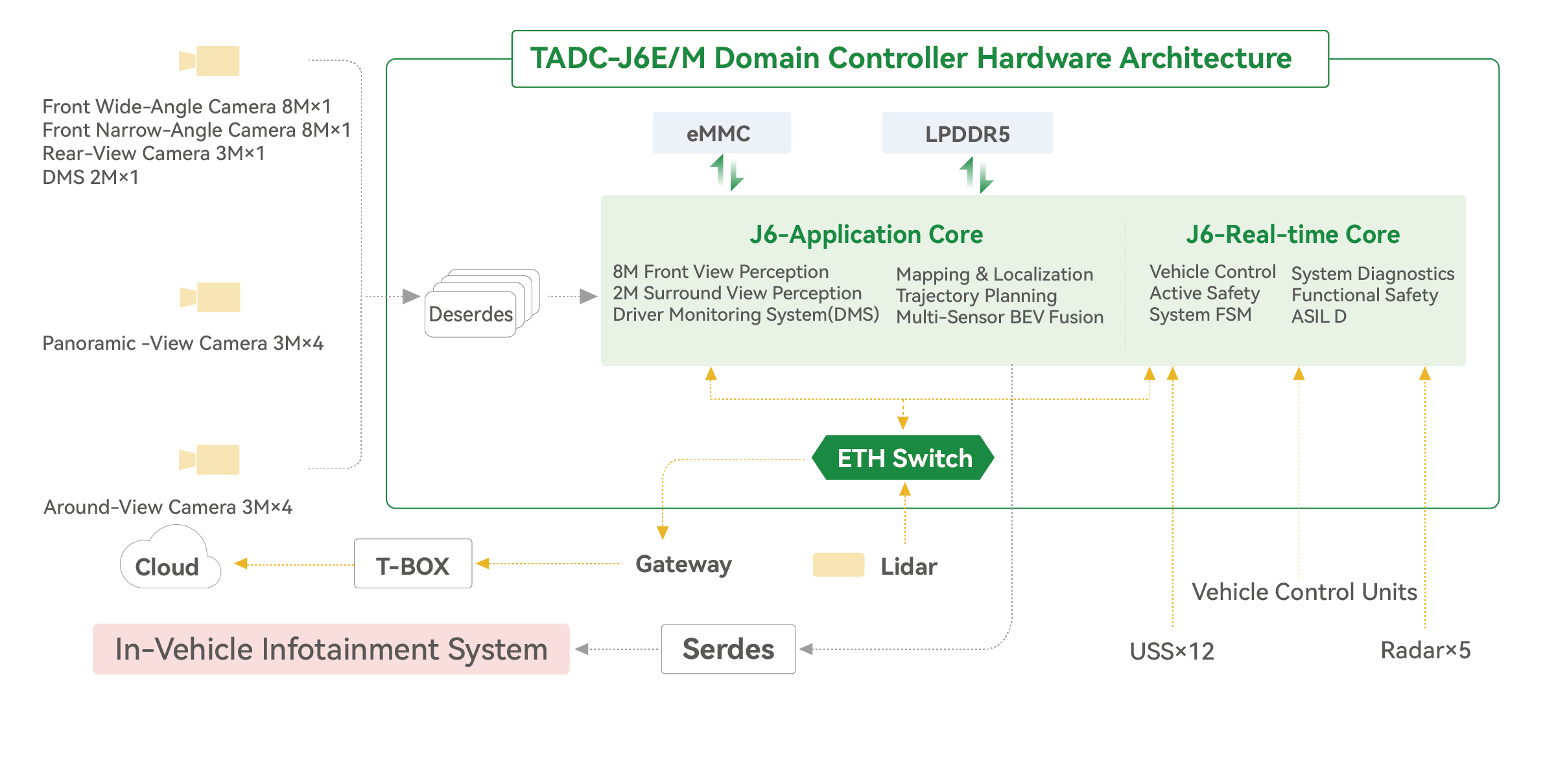

  • RELATED ARCHITECTURE

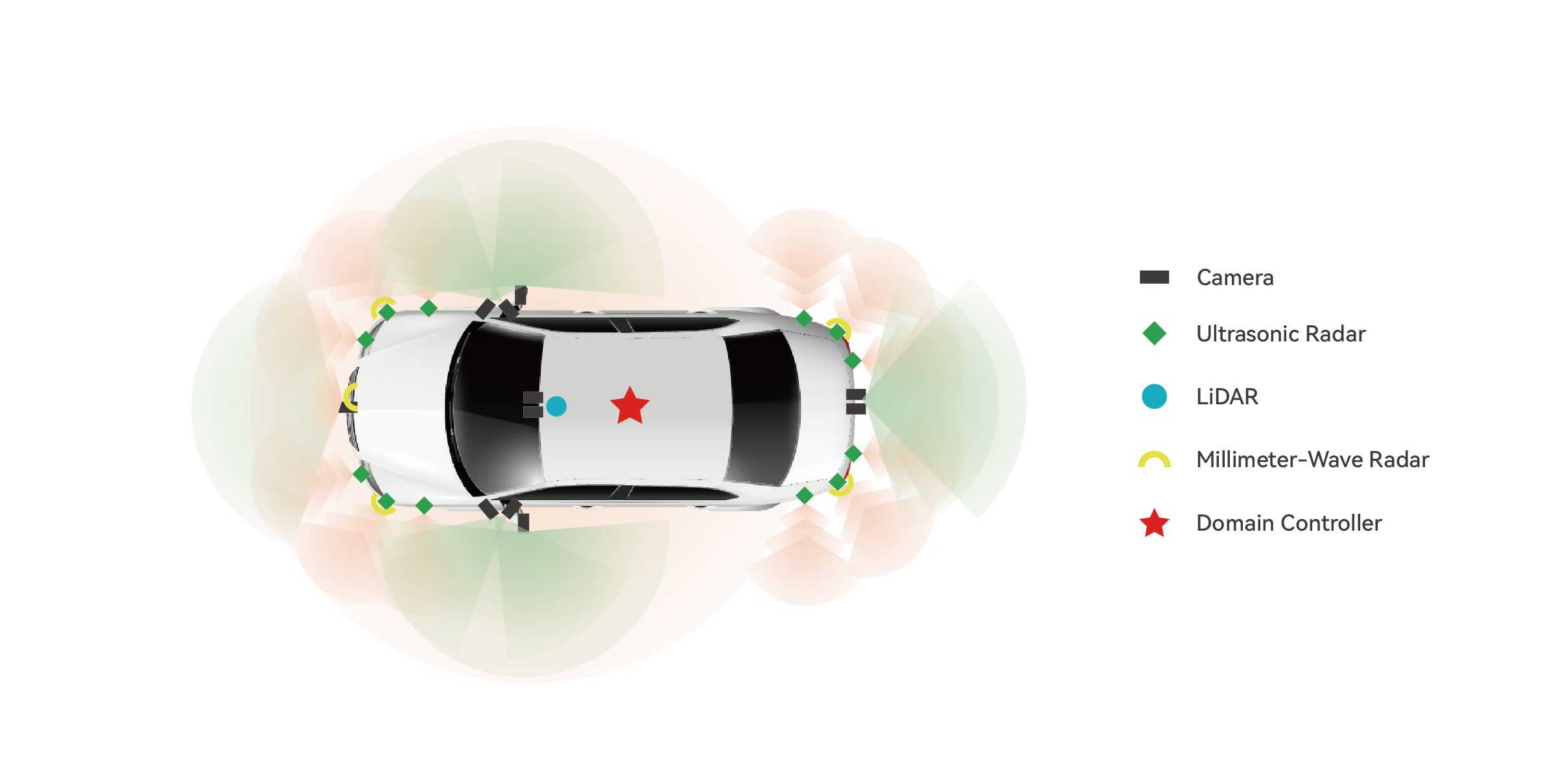

  • SENSOR CONFIGURATION


RELATED PRODUCTS

  • 960×580_机器人_TADC-J6M.png

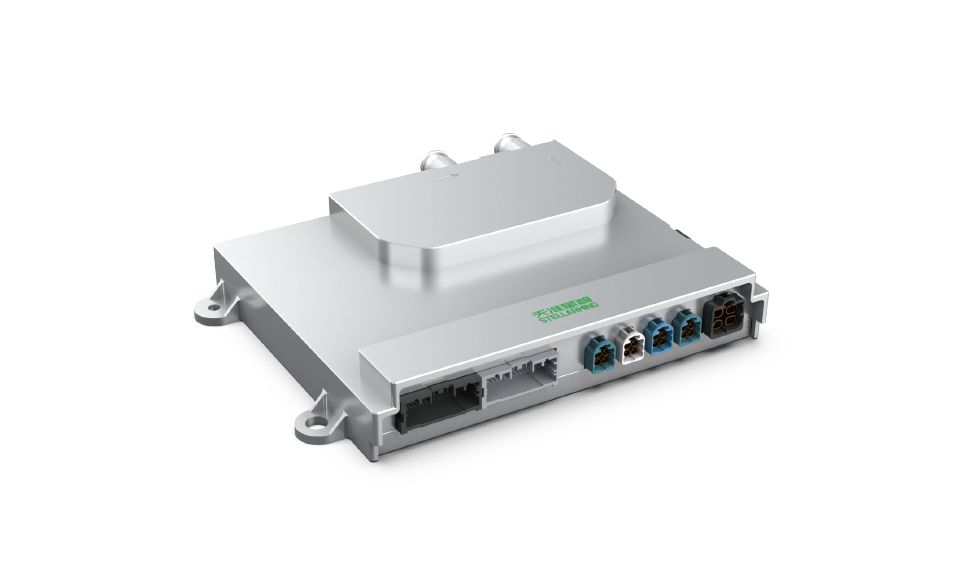

    TADC-J6M
    Core BoardHorizon J6M
    AI Performance128 TOPS
    Memory12GB LPDDR5
    Camera Port12*GMSL2
    Gigabit Ethernet

    2*1000BaseT1

    2*100BaseT1

    GPSBuilt-in GPS
    Cooling MethodWater cooling/Air cooling
    Power SupplyDC: +9 V~+36 V
    Working Temp.-40℃~85℃
    Storage Temp.-40℃~105℃
    IP CodeIP52
    Size245*175*40mm
    Weight1.7kg
    ApplicationPassenger Vehicles Urban NOA, Highway NOA
  • 960×580_机器人_TADC-J62.png

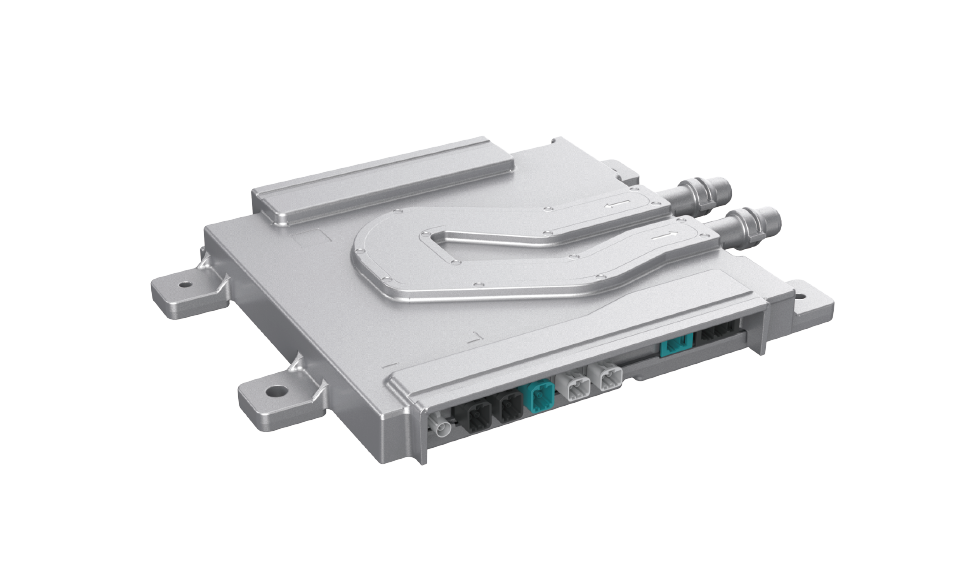

    TADC-J6MD
    Core Board2*Horizon J6M
    AI Performance2*128 TOPS
    Memory2*12GB LPDDR5
    Camera Port12*GMSL2
    Gigabit Ethernet6*1000BaseT1
    2*100BaseT1
    GPSBuilt-in GPS
    Cooling MethodWater cooling/Air cooling
    Power SupplyDC: +9 V~+36 V
    Working Temp.-40℃~85℃
    Storage Temp.-40℃~105℃
    IP CodeIP52
    Size299*187*47mm
    Weight2.1kg
    ApplicationPassenger Vehicles Urban NOA, Highway NOA, Low-Speed Autonomous Vehicles, Trucks, Minecarts
  • 960×580_机器人_TADC-D52.png

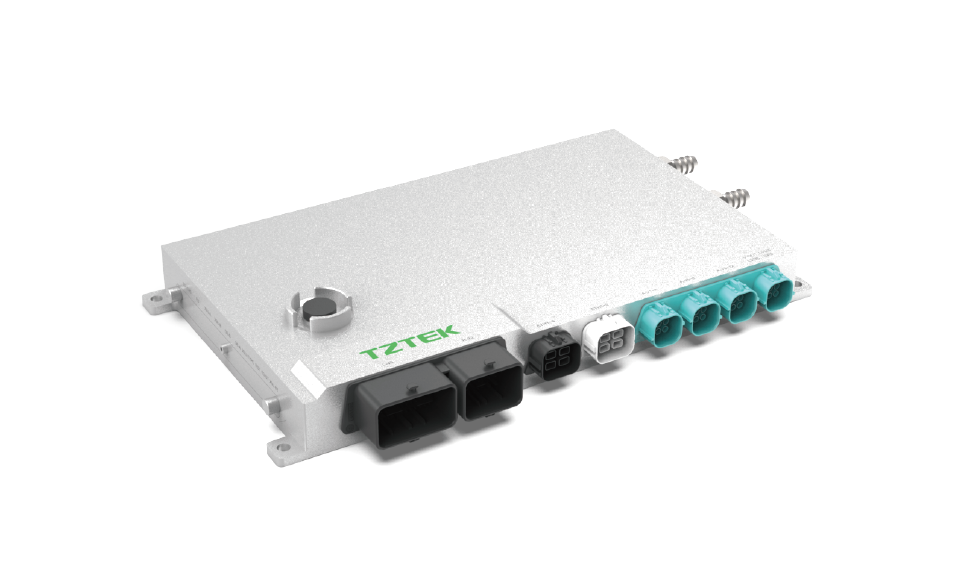

    TADC-D52
    Core Board2*Horizon J5
    AI Performance2*128 TOPS
    Memory48GB LPDDR4
    Camera Port12 x GMSL2
    Gigabit Ethernet6 x 1000BaseT1
    2 x 100BaseT1
    GPSBuilt-in GPS
    Cooling MethodWater cooling/Air cooling
    Power SupplyDC: +9 V~+36 V
    Working Temp.-40℃~85℃
    Storage Temp.-40℃~105℃
    IP CodeIP52
    Size280*180*40mm
    Weight2.5kg
    ApplicationPassenger Vehicles Urban NOA, Highway NOA, Low Speed Autonomous Vehicles, Trucks, Minecarts
