From Metrology Tool to Quality Hub: TZTEK Vispec Cube Empowers High-End Manufacturing Upgrade

Against the backdrop of smart manufacturing revolution, components across semiconductors, new energy, aerospace and other industries are rapidly evolving toward miniaturization and complexity, imposing stricter demands on high-precision measurement. However, traditional measurement software has become a bottleneck in quality inspection due to low programming efficiency, difficult production line coordination, and weak scenario adaptability.

To address this, TZTEK, leveraging its deep expertise in precision measurement and AI, has independently developed a high-end measurement software—Vispec Cube—to provide more efficient and intelligent measurement solutions for high-precision manufacturing scenarios.

Class 1 (0.1μm, 0.1") certification of German PTB

Meeting High-End Metrology Specifications

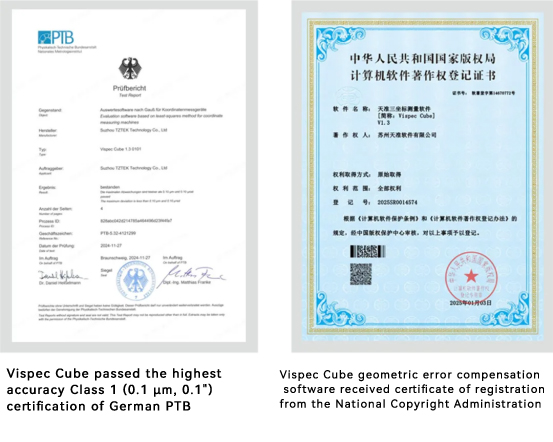

Vispec Cube passed the highest accuracy Class 1 (0.1 μm, 0.1") certification of German PTB.

As one of the most authoritative certifications in the global metrology field, PTB Class 1 imposes rigorous requirements on software measurement accuracy and reliability. This accreditation verifies that Vispec Cube meets international high standards in data consistency, traceability, and measurement stability, making it well-suited for ultra-precision applications in high-end manufacturing.

Five Intelligent Measurement Capabilities for Industrial Sites

To resolve the pain point of traditional software being "feature-rich but difficult to implement," Vispec Cube offers deep optimization across five dimensions:

1. More Efficient Measurement Programming

- Click-to-Generate Applications: Adopts ladder-diagram task editing for object-oriented programming; users configure inspection routines via mouse clicks to slash programming learning curve and boost operational productivity.

- Wizard-Guided Feature Creation: Provides guided element creation workflows, streamlining everything from feature picking to parameter settings, significantly reducing programming time.

- Batch Tolerance Creation: Supports batch setting of tolerance parameters, allowing tolerance rules to be applied to multiple measurement elements at once, greatly enhancing batch inspection programming efficiency.

2. Intuitive CAD & 3D Interactive Operation

- Multi-Format CAD Compatibility: Supports the import of standard CAD formats such as IGES and STEP, and enables direct opening of native models from mainstream engineering software including NX/UG and Catia V4/V5, ensuring seamless data integration.

- Interactive 3D Visualization: Provides an intuitive 3D viewport with support for model rotation, panning, zooming, and transparency adjustment, clearly displaying workpiece structures and measurement points.

- Automatic Inspection Path Planning: Automatically generates optimal inspection paths based on the CAD model, featuring automatic obstacle avoidance to ensure efficient and safe measurement processes.

3. Safer & More Reliable Offline Measurement

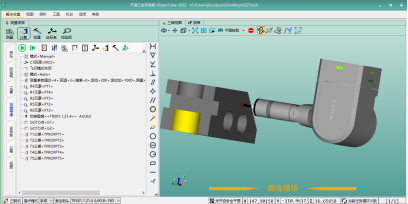

- Offline Programming & Collision Detection : Supports simulation of probe trajectories in a virtual environment to identify collision points in advance. Users can adjust Goto points to prevent potential damage to equipment or workpieces during actual CMM operation.

- Customizable Safety Boundaries: Allows customization of the machine's safe operating envelope, further enhancing measurement security throughout the whole process.

4. Clearer Data Analysis & Quality Feedback

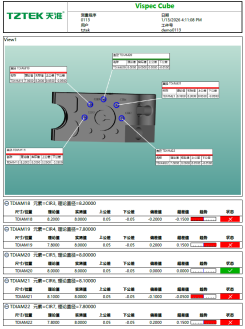

- Graphical Reporting Measurement results are displayed intuitively via combined 3D graphics and data tables with clear Pass/Fail markings for rapid workpiece quality assessment.

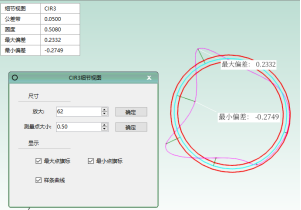

- Detailed View Analysis Provides element form detail views (such as roundness and profile deviation curves) to visually display the deviation distribution of measured items. This helps users accurately pinpoint machining issues and provides data-driven support for process optimization.

- Multi-format Report Export Reports can be exported to PDF, Excel and plain text. Real-time cumulative reports and feature property reports are also available to accommodate diversified document management.

5. Comprehensive Measurement Capabilities & Open Interfaces

- Extensive Measurement Elements & Tolerance Evaluation : Covers all types of geometric elements, including points, lines, planes, circles, cylinders, and curves and supports dozens of tolerance evaluations such as distance, angle, position, roundness, and  surface profile.

- Probe & Automation Integration : Supports hardware configurations including probe changers, star probes, and rotary joints. Fixture movements can be controlled via I/O cards; the software communicates with AGVs over HTTP protocol to realize automatic loading and unloading, matching the demands of automated production lines.

Wide Compatibility with Diverse High-End Manufacturing Applications

Powered by its high-precision measurement capabilities and automation synergy advantages, Vispec Cube is widely deployed across high-end manufacturing industries:

 ·Aerospace Ideal for the high-precision measurement and quality control of aircraft structural components, precision connectors, and complex curved-surface parts.

·Automotive & New Energy Manufacturing Supports efficient measurement within automated mass-production scenarios to meet inspection demands for core components such as motors, batteries, chassis, and precision parts in new energy vehicles,

·Semiconductor & Precision Electronics Meets the micron-level measurement requirements for semiconductor devices, precision molds, and miniature electronic components.

·High-End Mold Manufacturing Adapts to full-dimension inspection and process analysis for complex molds, precision injection molds, and die-casting molds.

Equipped with proprietary algorithms that overcome the limitations of conventional metrology and intelligent functions linking data to production decisions, Vispec Cube is far more than a measuring instrument; it serves as a digital bridge connecting precision inspection, data analytics and smart manufacturing.

Looking ahead, TZTEK will keep focusing on "AI + Industry", continuously pushing the boundaries of precision metrology. Relying on our self-developed core R&D strengths, we are committed to helping high-end manufacturing establish robust, efficient, and stable quality control systems.
