Behind Micron-level Precision: How TZTEK Delivers Intelligent Measurement for Foldable Phone Hinge Gears

Foldable smartphones are rapidly evolving toward high-end, lightweight, and large-scale production. According to IDC, the global foldable smartphone market is expected to achieve approximately 30% year-on-year growth in 2026^[1].

As the core component determining folding experience, the hinge system demands ever-higher manufacturing precision. The tiny planetary gear set inside the hinge directly determines the device’s folding lifespan, uniform operating feel and long-term reliability. For high-end foldable products, the machining and assembly precision of micro gears has reached the micron level. Achieving stable, high-precision and high-efficiency measurement in mass production has become a key challenge for smart device manufacturing.

Industry Pain Points

Why Foldable Hinge Manufacturing Is Growing More Challenging

To balance lightweight design, durability, and smooth operation, foldable screen hinges impose extremely high requirements on the machining precision of the gear system. With continuous product iteration, micro gears keeps shrinking in size with tighter machining tolerances. Higher standards are also set for tooth profile uniformity, assembly fit and long-term wear resistance.

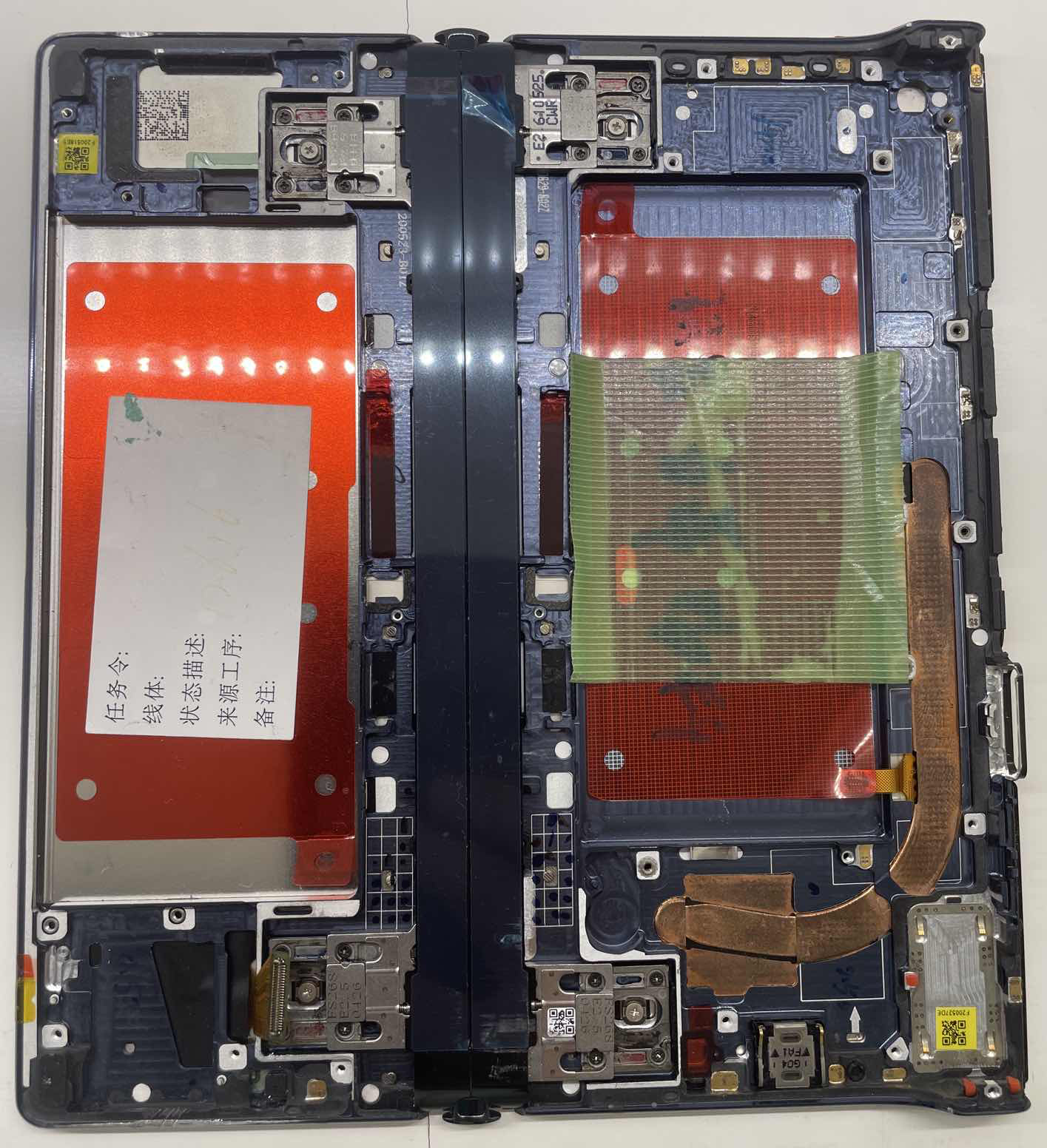

A leading consumer electronics manufacturer encountered a typical challenge during the mass production of foldable screen hinges:

The module of the micro gears used in hinge transmission is less than 0.2 mm, with tooth profile error requirements controlled within 5 μm. Meanwhile, measurement efficiency and consistency under mass production also need be guaranteed.

Traditional solutions gradually revealed several issues during production lines:

 · Contact measurement easily caused scratches or deformation to the workpieces;

 · Highly reflective metal surfaces easily generated imaging stray light interference;

· Traditional 2D vision struggled to fully capture complex tooth profiles;

· Offline sampling inspection could not quickly feedback process fluctuations.

As products became even more compact and lightweight, these issues directly impacted assembly yield and long-term reliability.

Technical Solution

Multi-Sensor Fusion: Building a High-Precision Intelligent Measurement System

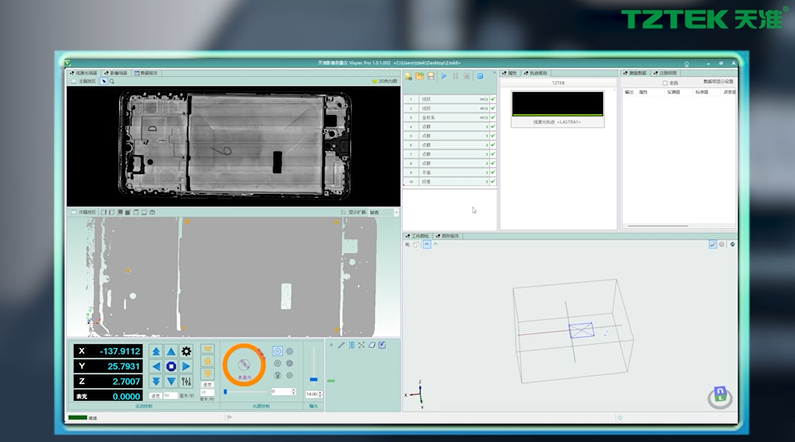

To address the above challenges, TZTEK deployed a composite multi-sensor fusion precision measurement solution for the company. The system integrates high-precision optics, 3D scanning, motion control, and AI algorithms to achieve high-precision intelligent measurement of micro gears.

1. High-Precision Optics & Multi-Angle Lighting

Equipped with high-precision dual telecentric optics, the system effectively minimizes perspective errors and visual distortion, ensuring consistent imaging for complex structures. Additionally, for highly reflective metal surfaces, the system combines multi-angle partitioned lighting with dynamic light source control, significantly enhancing tooth profile edge contrast and reducing stray light interference.

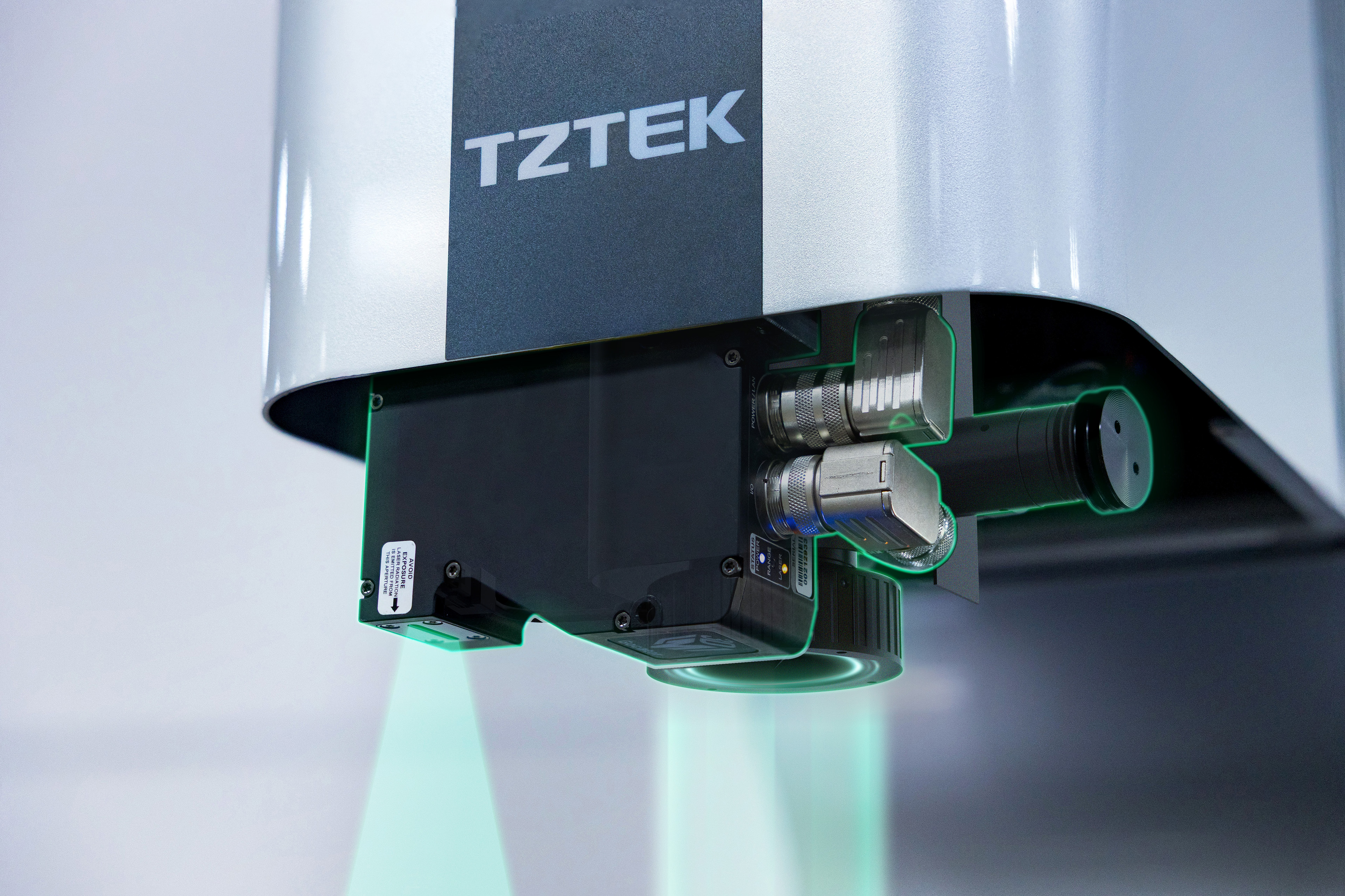

2. 3D Scanning & Full Tooth Profile Data Reconstruction

Powered by high-precision motion control and 3D line laser scanning, the system can complete full tooth profile point cloud acquisition for gears in a short time, enabling 3D data reconstruction of complex structures. Compared with traditional methods, 3D measurement presents the true machining status of gears more comprehensively, providing a more reliable data foundation for subsequent process analysis and assembly optimization.

3. AI-powered Defect Detection

Embedded with industrial AI models trained on massive qualified and defective samples, the system automatically identifies typical defects such as micro burrs, dents and wear. Compared with traditional methods relying on manual experience, AI algorithms further improve measurement consistency and automation levels, reducing fluctuations caused by human misjudgment.

Value Creation

Simultaneous Improvement in Efficiency and Yield

After solution deployment, the company achieved notable upgrades in production efficiency and product quality:

· Measurement time per gear set reduced from 35 minutes to 8 minutes.

· Measurement efficiency increased by over 300%.

· Hinge assembly yield improved to over 99.5%.

This means that not only measurement cycle time has been reduced, but process stability during mass production has also been enhanced. For products like foldable screens that heavily rely on structural precision and consistency, these improvements directly impacts overall device quality, user experience, and large-scale manufacturing capability.

As AI terminals continue to evolve toward higher integration and precision, high-precision intelligent measurement is becoming a crucial pillar of advanced manufacturing. TZTEK will continue to focus on smart devices and precision electronics manufacturing scenarios, promoting the integrated application of industrial AI and advanced measurement technologies to help clients enhance manufacturing precision, yield, and production efficiency.

For further details about related application solutions, please Contact Us.
